B.2. Starting a New Quartus® Prime Pro Edition Design

This design example uses Quartus® Prime Pro Edition software version 18.0.
  1. Click File > New Project Wizard.
  2. Select a project folder, then keep clicking Next until you see Family, Device & Board Settings.
  3. Select your device, then keep clicking Next until you reach the end of the project settings, then click Finish.

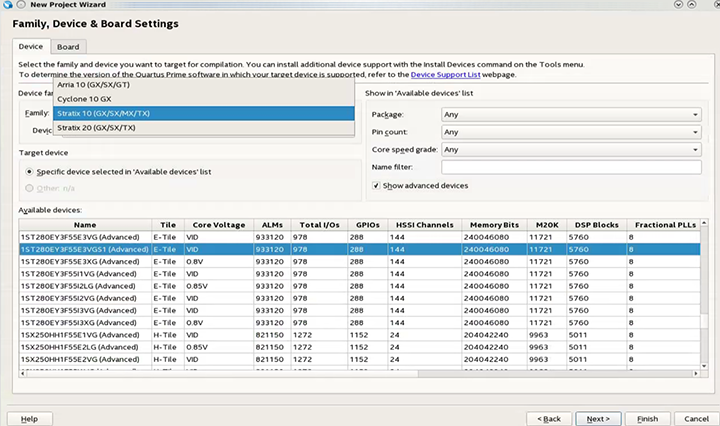

    Figure 142. Family, Device & Board Settings

    Refer to the Device Data Sheet for E-tile specifications.

Related Information
Level Two Title
