B.3. Selecting the Configuration Clock Source

Use this procedure to set the clock for the transceiver reset sequence (TRS) and local TRS (LTRS) blocks.
  1. Click Assignment > Settings > Device/Board.
  2. Click the Device and Pin Options button.
    Figure 143. Device and Pin Options Button
  3. From the General category, select either 100 MHz OSC_CLK_1 pin, 125 MHz OSC_CLK_1 pin, or 25 MHz OSC_CLK_1 pin in the Configuration clock source field depending on your clock frequency's availability.

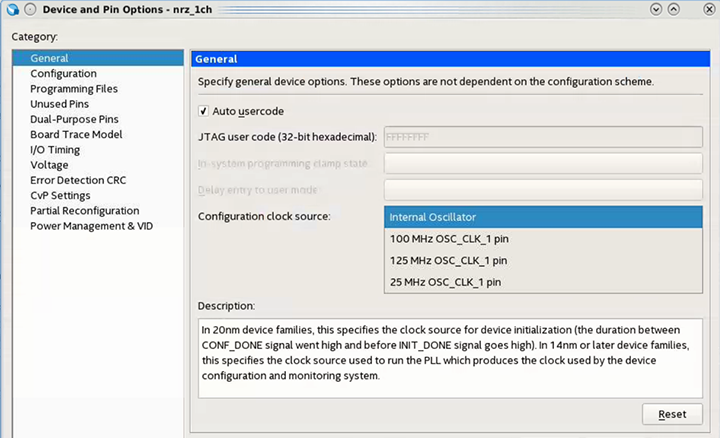

    Figure 144. Configuration Clock Source Selection
