B.8. Bringing up the Board

Follow this procedure to bring up your board.
  1. Set the refclk signal according to the guidelines provided in the Device Family Pin Connection Guidelines.
  2. Download the settings to the board by clicking the Programmer tool.

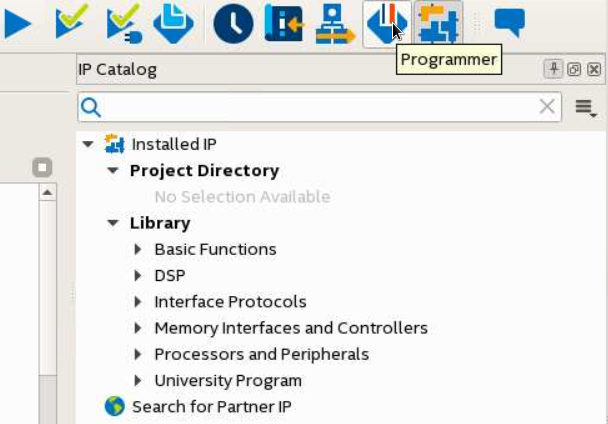

    Figure 150. Programmer Tool
  3. Click Auto Detect to detect devices, then locate your device.
  4. Next to your device, click Change File to locate and add the .sof file.
    Figure 151. Programmer Window
  5. Select the Program/Configure option.
  6. Click Start to begin programming.
