6.4. Viewing Parameter Settings From the Project Navigator

Starting from the Intel® Quartus® Prime Pro Edition software version 23.3, you can view the parameter settings for a module directly from the Project Navigator.

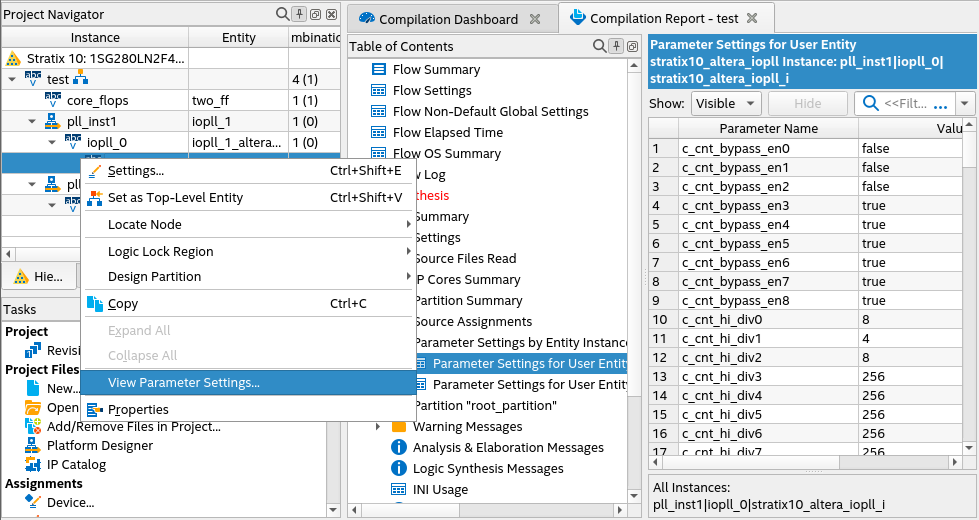

To access the settings, locate the module, right-click and select View Parameter Settings in the context-sensitive menu. Compilation Report appears displaying the parameter settings for the entity, as shown in the following image:

Figure 60. Viewing Parameter Settings
