4.1. Creating a New FPGA Design Project

The Intel® Quartus® Prime software makes it easy for you to quickly setup a new FPGA design project.

Use the quick access icons on the home page to set up your FPGA design project:

  • New Project Wizard: Use this option to create a project either by specifying project files, libraries, target device family, and EDA tool settings, or using an existing design example.
  • Open Example Project: Use this option if you want to base your current project on a pre-installed and verified design example.
  • Open Project: Use this option to browse and open your existing projects.

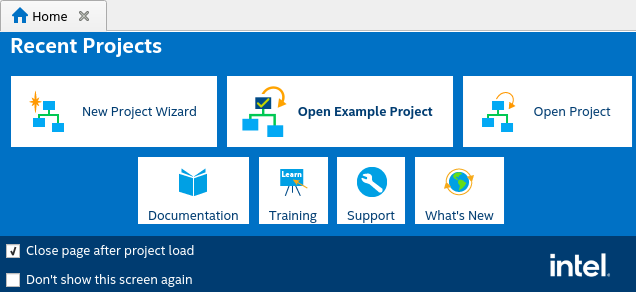

Figure 9.  Intel® Quartus® Prime Home Page

The wizard guides you through specifying various options for new project setup and includes access to helpful project templates and design examples that allow you to preconfigure project settings for specific applications, FPGA devices, and target boards.


Section Content
Using the Board-Aware Flow
Project Path Length Considerations
