1.3.4.1. Viewing IP Core License Data

Following Analysis & Synthesis, you can view the details about the IP in your design in the Synthesis IP Cores Summary report that generates automatically. This report lists the following about each IP instance discovered during Analysis & Synthesis, allowing you to determine the license status of each IP in your design:

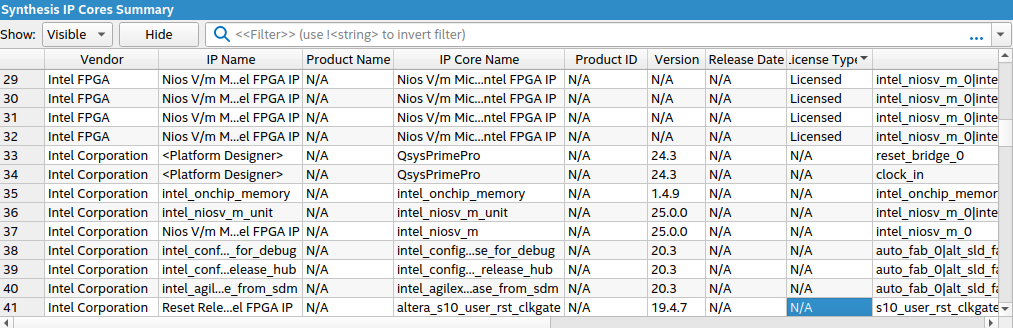

Figure 41. Synthesis IP Cores Summary Report


  • Vendor name, such as Intel Corporation.
  • IP Name in IP Catalog, such as Reset Release Intel FPGA IP.
  • Product Name displays the product name.
  • Product ID displays the product HEX ID.
  • IP Core Name as represented in underlying software code, such as altera_s10_user_rst_clkgate.
  • Version of the IP, such as 19.4.7.
  • Release Date of the IP, such as 09.30.2024.
  • License Type indicates whether an IP is Licensed or not (N/A).
  • Entity Instance name, such as s10_user_rst_clkgate_0.
  • IP Include File displays the IP include file associated with each IP.
