4.2. Parameterizing the Performance Monitor (PMON) FPGA IP

You can parameterize your Performance Monitor (PMON) IP with the PMON IP parameter editor. Your parameterization should match the AXI4 interface that you want to monitor.

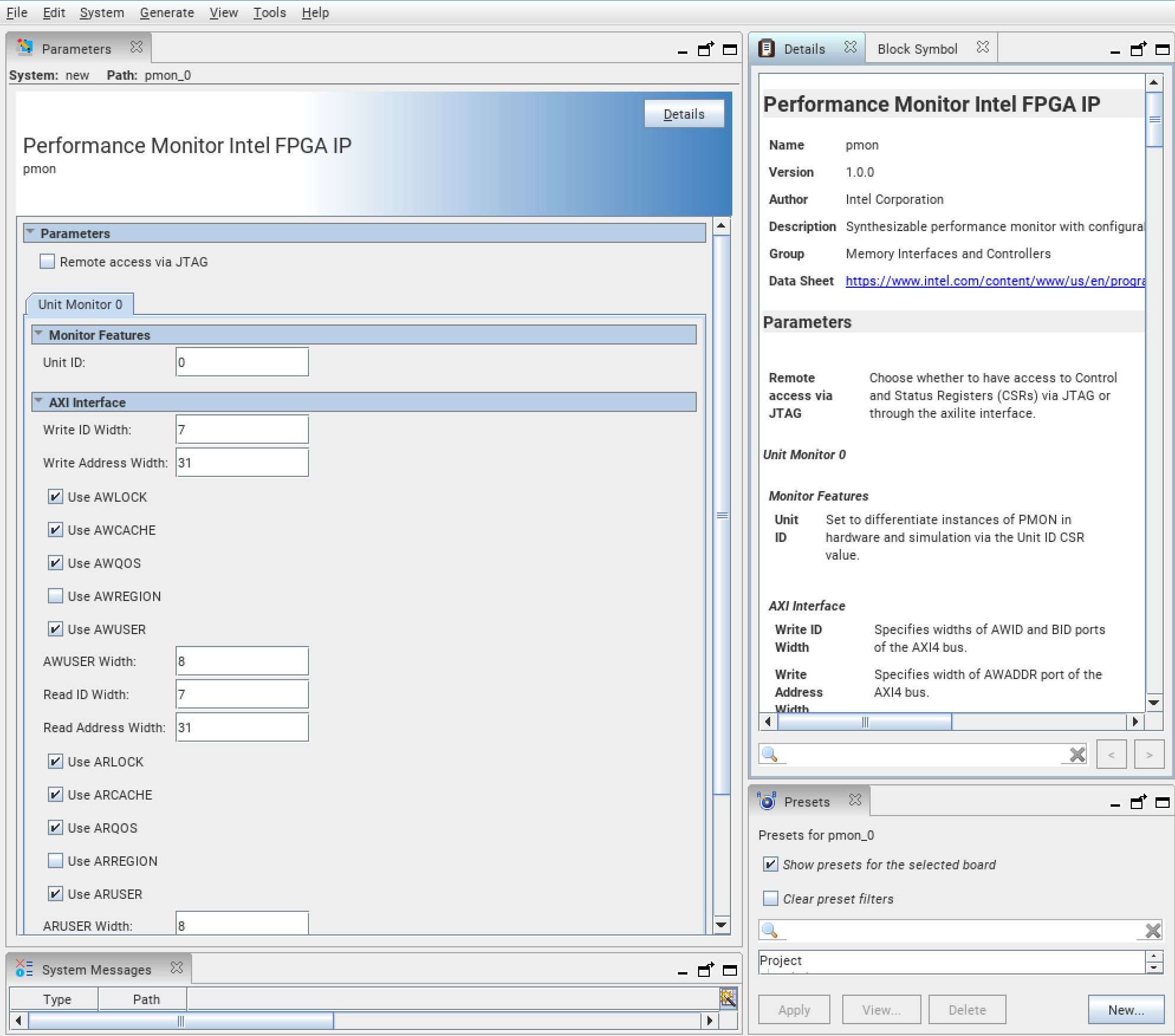

Figure 2. PMON IP Parameter Editor
