2.3.2. Parametering the EMIF HPS IP

After you have configured the high-level topology, you can continue parameterizing the EMIF IP for the selected memory protocol.

To parameterize the EMIF IP, follow these steps:

  1. Click Dive Into Packaged Subsystem. A new Platform Designer window appears, listing the available EMIF IP.
  2. In the new Platform Designer window, set the desired parameters for your EMIF IP and selected memory protocol.

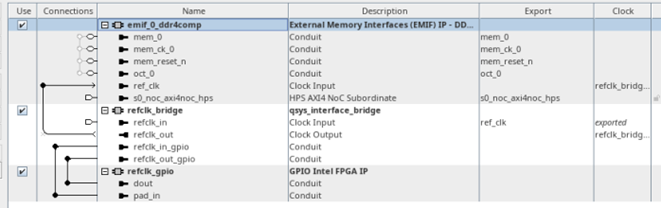

The following figure depicts the Platform Designer.

Figure 14.  Example of the Platform Designer Window to Parametrize the External Memory Interfaces for HPS IP
