2.4.2. Example: Byte Swizzling for a x32 DDR4 interface, using a memory device of x8 width

Example: Byte Swizzling for a x32 DDR4 interface, using a memory device of x8 width

Table 7.
Lane Number BL0 BL1 BL2 BL3 BL4 BL5 BL6 BL7
Default Placement DQ[0] AC[0] AC[1] AC[2] DQ[1] DQ[2] DQ[3] GPIO
After Byte Swizzling DQ[2] AC[0] AC[1] AC[2] DQ[1] DQ[0] DQ[3] GPIO
BYTE SWIZZLE 2 X X X 1 0 3 X

This example illustrates swizzling DQS group 0 with DQS group 2. The BYTE_SWIZZLE_CH0 denotes the DQS group implemented in the lane after the swizzling. X indicates that the lane is not used as a data lane (meaning that it serves as an address/command lane or is not used by the EMIF interface).

To achieve this swizzling, you must enter BYTE_SWIZZLE_CH0=2,X,X,X,1,0,3,X; in the Pin Swizzle Map field in the PHY section of the High-level Configuration tab in the parameter editor.

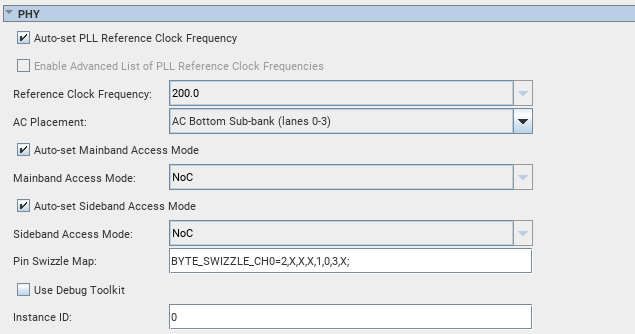

Figure 20. Swizzling DQS group 0 with DQS group 2
