2.4.6.11.1. State-Based Triggering Flow Tab

The State-Based Trigger Flow tab is the control interface for the custom state-based triggering flow.

This tab is only available when you select State-Based on the Trigger Flow Control list. If you specify Trigger Flow Control as Sequential, the State-Based Trigger Flow tab is not visible.

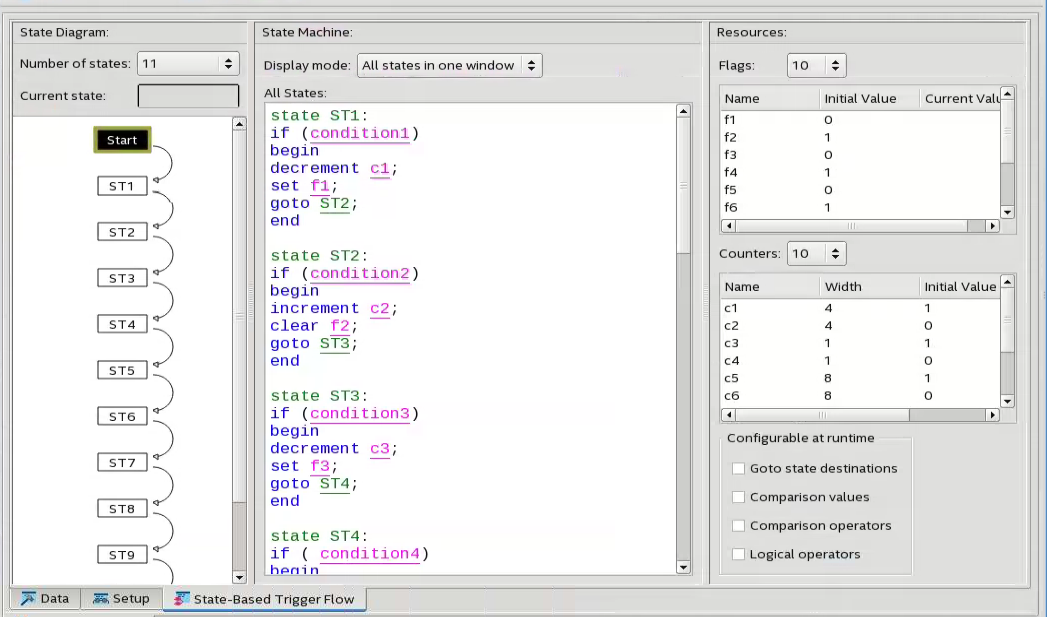

Figure 55. State-Based Triggering Flow Tab

The State-Based Trigger Flow tab contains three panes:

Level Two Title
