Cyclone V Device Datasheet

CTLE Response at Data Rates > 3.25 Gbps across Supported AC Gain and DC Gain

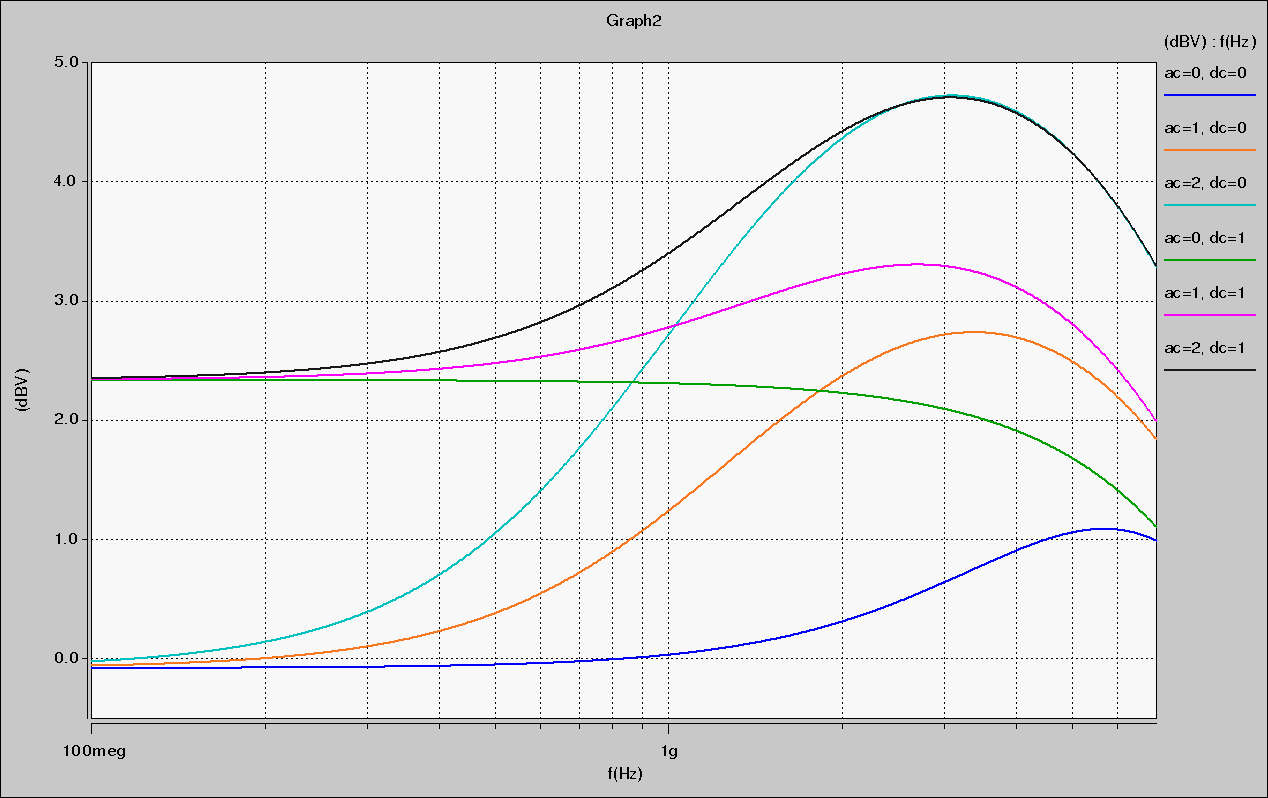

Figure 3. Continuous Time-Linear Equalizer (CTLE) Response at Data Rates > 3.25 Gbps across Supported AC Gain and DC Gain for Cyclone® V GX, GT, SX, and ST Devices
