2.2. Installing DSP Builder for Intel® FPGAs

Procedure

  1. Go to the FPGA Software Download Center.
  2. On the page, search for and click DSP Builder for Intel® FPGAs .

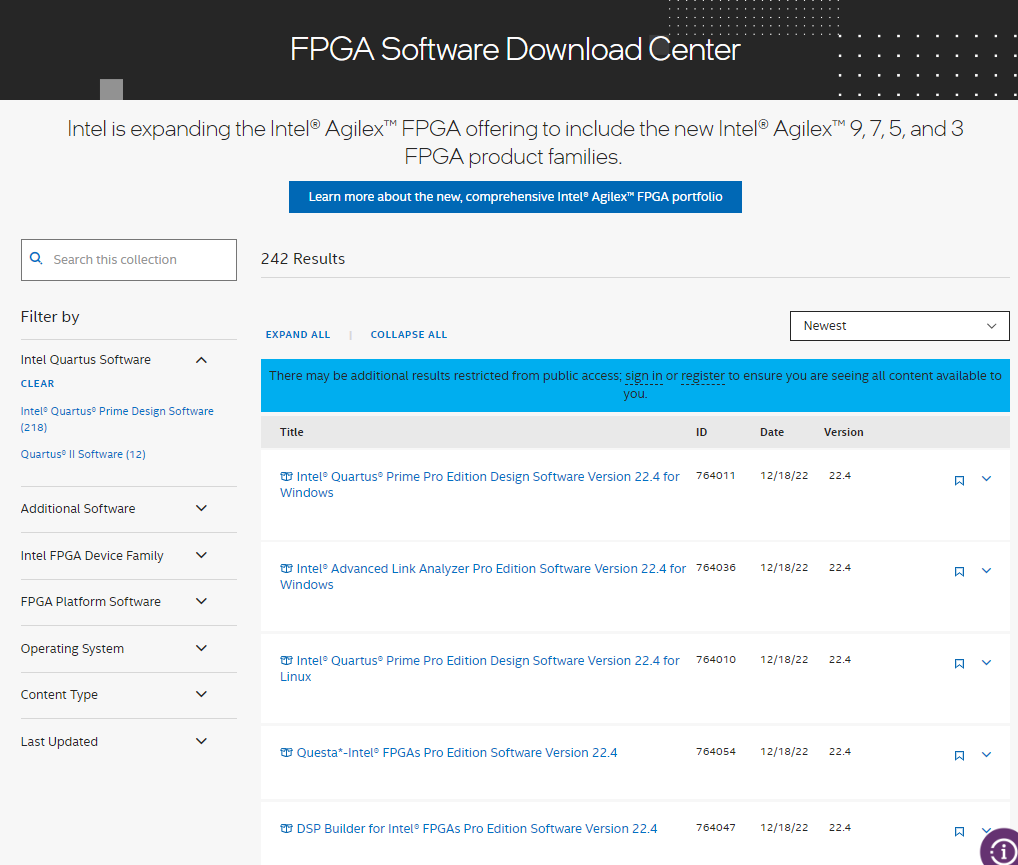

    Figure 2. Select DSP Builder
    The default installation directory is c:\intelfpga\<version>\quartus on Windows or /opt/intelfpga<version>/quartus on Linux.
    Figure 3.  DSP Builder for Intel® FPGAs Directory Structure where <path> is the installation directory that contains the Quartus® Prime software
    After installing DSP Builder for Intel® FPGAs, the libraries are available in the Simulink library browser in the MATLAB software.
Level Two Title
