7. Functional Description of the Drive-on-Chip Design Example
The design consists of two main elements: Qsys, DSP Builder for Intel FPGAs, IP, and RTL sources compiled into an FPGA programming file; and C source code compiled to run on a Nios II processor in the FPGA.
The Qsys system consists of:
- Processor subsystem
- DC link monitors
- Intel® MAX® 10 modular dual ADC
- DC-DC converter
- FOC subsystem
- One or two motor drive axes comprising the following motor control peripheral components:
- 6-channel PWM
- Drive system monitor
- Quadrature encoder interface
- Resolver SPI interface
- ADC interface

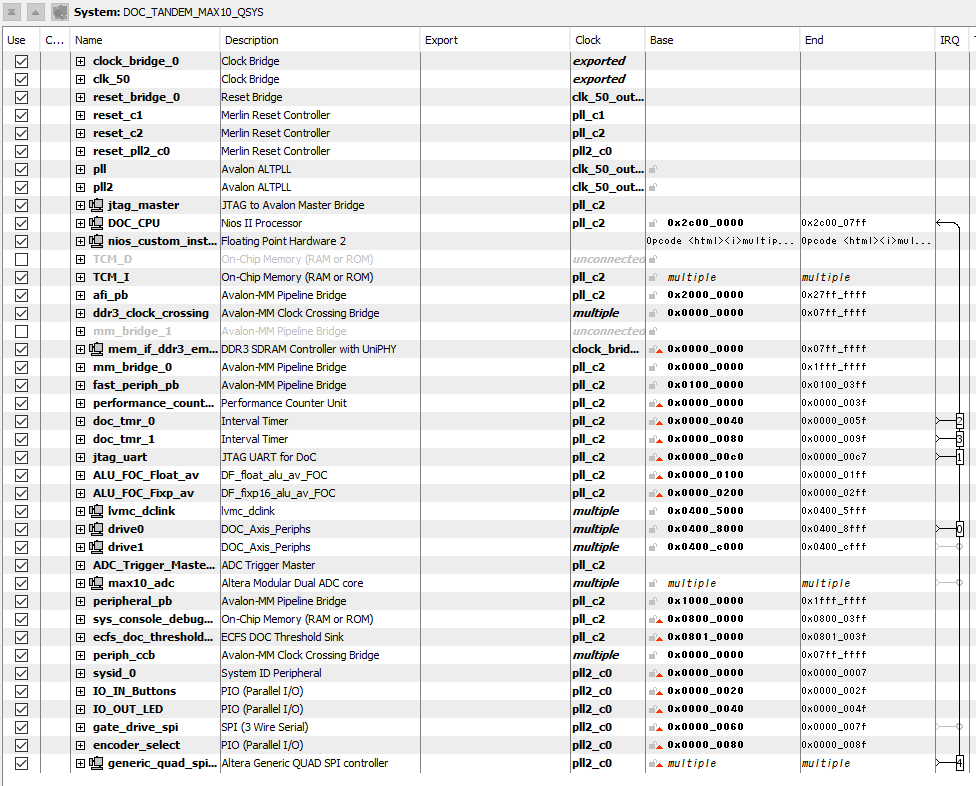

Figure 22. Qsys System Top-Level Design
Figure 23. Qsys System for a Drive Axis

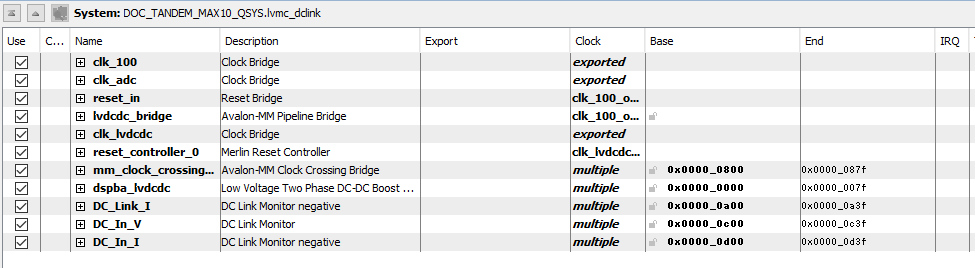

Figure 24. Qsys System for DC-DC Converter
