1.4.1. Procedure

To change the target device in your hardware design example, follow these steps:

  1. Launch the Intel® Quartus® Prime Pro Edition software and open the hardware test project file /hardware_test_design/altera_eth_top.qpf.
  2. On the Assignments menu, click Device. The Device dialog box appears.
  3. In the Device dialog box, select the device in the target device table that matches the device part number on your development kit. Refer to the Intel® Stratix® 10 GX Signal Integrity Development Kit link on the Intel® website for more information.
  4. A prompt appears when you select a device, as shown in the figure below. Select No to preserve the generated pin assignments and I/O assignments.

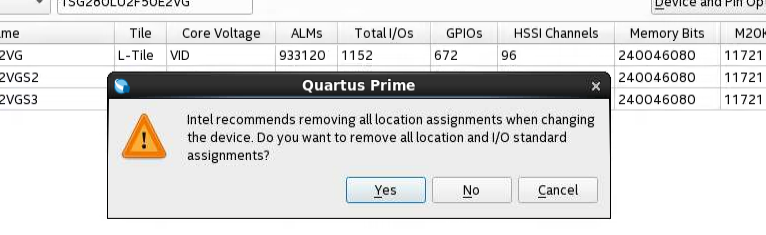

    Figure 5.  Intel® Quartus® Prime Prompt for Device Selection
  5. If you select an L-Tile GX device such as 1SG280LU2F50E2VG as your target device, click Upgrade IP Components in Project menu, select L-Tile/H-Tile Transceiver Native PHY Intel® Stratix® 10 FPGA IP from the list of IP components, and click Upgrade in Editor. Regenerate this IP component.
    Note: If you select H-Tile GX as your target device, skip this step if you are using the same Quartus and IP version.
  6. Perform full compilation of your design.
You can now test the design on your hardware.
Note: No other pin assignment modifications are required for the design example. When you generate the design example targeting other Intel® Stratix® 10 development kits, refer to the respective development kit user guides for pin assignment.
