5.5.1. Changing to SFP+ Setting

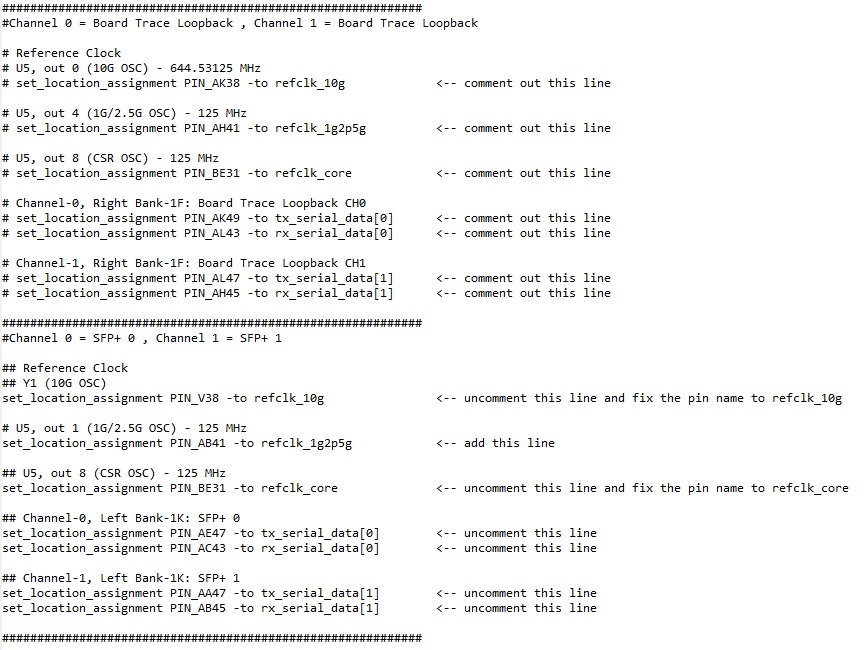

In order to use SFP+, modify altera_eth_top.qsf file with the following setting:
