Platform Profiler View

Use the Platform Profiler viewpoint to examine a performance overview of system behavior. Understand platform-level configuration, utilization and imbalance issues related to compute, memory, storage, IO and interconnects.

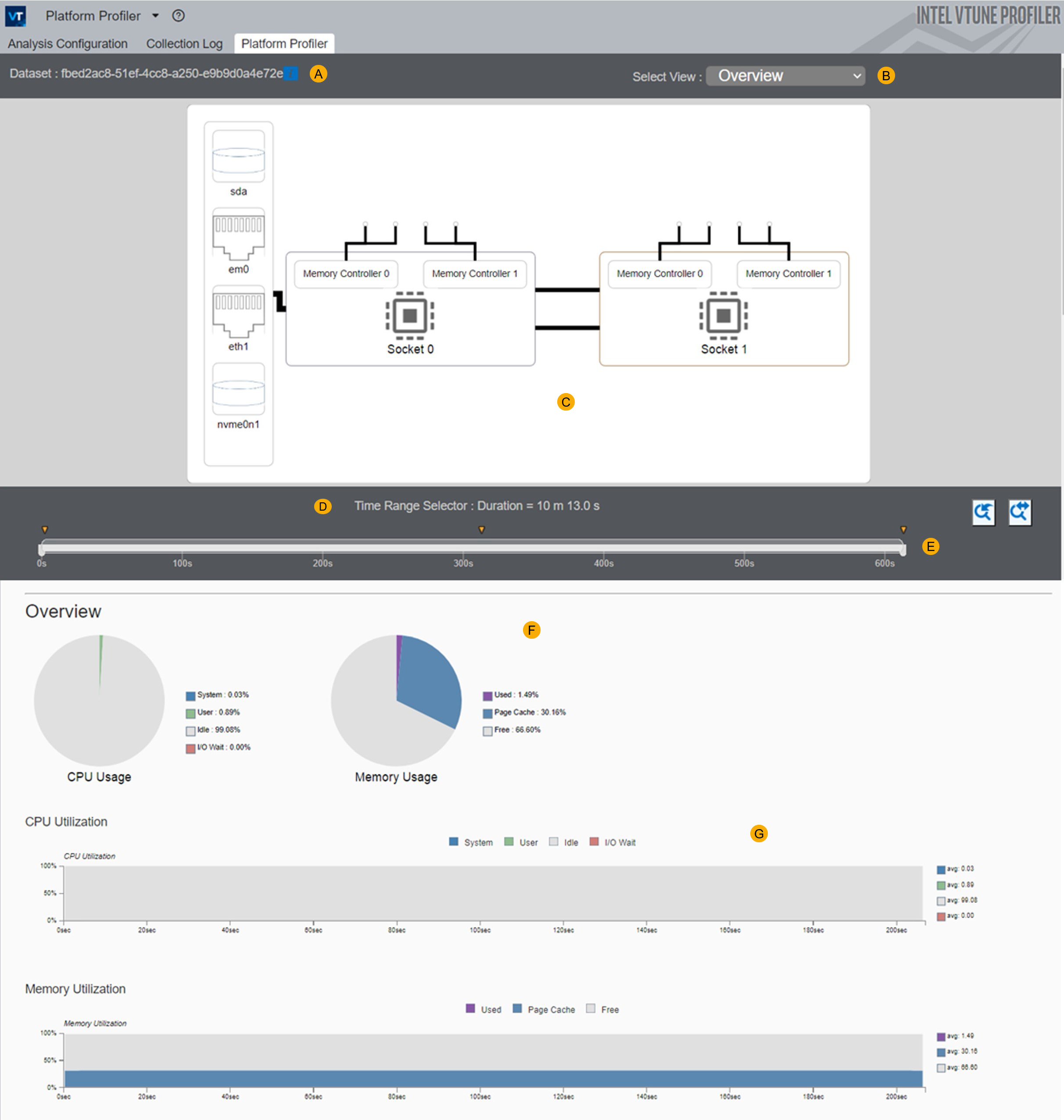

Once you finish data collection in the Platform Profiler analysis type, open the Platform Profiler tab to see a performance overview.

Start with the platform configuration diagram and then see summary information and key metrics.

Hover over here to see information about the system used for data collection.

See different views for information on sockets, cores, memory, and storage devices.

Hover over here to see additional information about the platform configuration. Click on specific elements to switch views.

Filter the data for a specific time range.

Undo or reset a zoom level.

See summary information about CPU and memory utilization.

See performance information over time. Click and drag to select and zoom into a specific time range.
