CPU Metrics Reference

Assists

Metric Description

This metric estimates cycles fraction the CPU retired uops delivered by the Microcode_Sequencer as a result of Assists. Assists are long sequences of uops that are required in certain corner-cases for operations that cannot be handled natively by the execution pipeline. For example, when working with very small floating point values (so-called Denormals), the FP units are not set up to perform these operations natively. Instead, a sequence of instructions to perform the computation on the Denormals is injected into the pipeline. Since these microcode sequences might be hundreds of uops long, Assists can be extremely deleterious to performance and they can be avoided in many cases.

Possible Issues

A significant portion of execution time is spent in microcode assists.

Tips:

Metric Description

Back-End Bound metric represents a Pipeline Slots fraction where no uOps are being delivered due to a lack of required resources for accepting new uOps in the Back-End. Back-End is a portion of the processor core where an out-of-order scheduler dispatches ready uOps into their respective execution units, and, once completed, these uOps get retired according to program order. For example, stalls due to data-cache misses or stalls due to the divider unit being overloaded are both categorized as Back-End Bound. Back-End Bound is further divided into two main categories: Memory Bound and Core Bound.

Possible Issues

Metric Description

This metric represents a fraction of cycles during which an application was stalled due to Core non-divider-related issues. For example, heavy data-dependency between nearby instructions, or a sequence of instructions that overloads specific ports. Hint: Loop Vectorization - most compilers feature auto-Vectorization options today - reduces pressure on the execution ports as multiple elements are calculated with same uop.

Possible Issues

A significant fraction of cycles was stalled due to Core non-divider-related issues.

This metric represents Core cycles fraction CPU dispatched uops on execution port 4 (Store-data). Note that this metric value may be highlighted due to Split Stores issue.

Port 5

Metric Description

This metric represents Core cycles fraction CPU dispatched uops on execution port 5 (SNB+: Branches and ALU; HSW+: ALU)

Port 6

Metric Description

Metric Description

This metric represents an overall arithmetic floating-point (FP) uOps fraction the CPU has executed (retired).

FP Assists

Metric Description

Certain floating point operations cannot be handled natively by the execution pipeline and must be performed by microcode (small programs injected into the execution stream). For example, when working with very small floating point values (so-called denormals), the floating-point units are not set up to perform these operations natively. Instead, a sequence of instructions to perform the computation on the denormal is injected into the pipeline. Since these microcode sequences might be hundreds of instructions long, these microcode assists are extremely deleterious to performance.

Possible Issues

A significant portion of execution time is spent in floating point assists.

Tips

Consider enabling the DAZ (Denormals Are Zero) and/or FTZ (Flush To Zero) options in your compiler to flush denormals to zero. This option may improve performance if the denormal values are not critical in your application. Also note that the DAZ and FTZ modes are not compatible with the IEEE Standard 754.

FP Scalar

Metric Description

This metric represents an arithmetic floating-point (FP) scalar uops fraction the CPU has executed. Analyze metric values to identify why vector code is not generated, which is typically caused by the selected algorithm or missing/wrong compiler switches.

FP Vector

Metric Description

This metric represents an arithmetic floating-point (FP) vector uops fraction the CPU has executed. Make sure vector width is expected.

FP x87

Metric Description

This metric represents a floating-point (FP) x87 uops fraction the CPU has executed. It accounts for instructions beyond X87 FP arithmetic operations; hence may be used as a thermometer to avoid X87 high usage and preferably upgrade to modern ISA. Consider compiler flags to generate newer AVX (or SSE) instruction sets, which typically perform better and feature vectors.

MS Assists

Metric Description

Certain corner-case operations cannot be handled natively by the execution pipeline and must be performed by the microcode sequencer (MS), where 1 or more uOps are issued. The microcode sequencer performs microcode assists (small programs injected into the execution stream), inserting flows, and writing to the instruction queue (IQ). For example, when working with very small floating point values (so-called denormals), the floating-point units are not set up to perform these operations natively. Instead, a sequence of instructions to perform the computation on the denormal is injected into the pipeline. Since these microcode sequences might be hundreds of instructions long, these microcode assists are extremely deleterious to performance.

Possible Issues

A significant portion of execution time is spent in microcode assists, inserted flows, and writing to the instruction queue (IQ). Examine the FP Assist and SIMD Assist metrics to determine the specific cause.

Branch Mispredict

Metric Description

When a branch mispredicts, some instructions from the mispredicted path still move through the pipeline. All work performed on these instructions is wasted since they would not have been executed had the branch been correctly predicted. This metric represents slots fraction the CPU has wasted due to Branch Misprediction. These slots are either wasted by uOps fetched from an incorrectly speculated program path, or stalls when the out-of-order part of the machine needs to recover its state from a speculative path.

Possible Issues

A significant proportion of branches are mispredicted, leading to excessive wasted work or Back-End stalls due to the machine need to recover its state from a speculative path.

Tips

1. Identify heavily mispredicted branches and consider making your algorithm more predictable or reducing the number of branches. You can add more work to 'if' statements and move them higher in the code flow for earlier execution. If using 'switch' or 'case' statements, put the most commonly executed cases first. Avoid using virtual function pointers for heavily executed calls.

2. Use profile-guided optimization in the compiler.

See the Intel 64 and IA-32 Architectures Optimization Reference Manual for general strategies to address branch misprediction issues.

Bus Lock

Metric Description

Intel processors provide a LOCK# signal that is asserted automatically during certain critical memory operations to lock the system bus or equivalent link. While this output signal is asserted, requests from other processors or bus agents for control of the bus are blocked. This metric measures the ratio of bus cycles, during which a LOCK# signal is asserted on the bus. The LOCK# signal is asserted when there is a locked memory access due to uncacheable memory, locked operation that spans two cache lines, and page-walk from an uncacheable page table.

Possible Issues

Bus locks have a very high performance penalty. It is highly recommended to avoid locked memory accesses to improve memory concurrency.

Tips

Examine the BUS_LOCK_CLOCKS.SELF event in the source/assembly view to determine where the LOCK# signals are asserted from. If they come from themselves, look at Back-end issues, such as memory latency or reissues. Account for skid.

Cache Bound

Metric Description

This metric shows how often the machine was stalled on L1, L2, and L3 caches. While cache hits are serviced much more quickly than hits in DRAM, they can still incur a significant performance penalty. This metric also includes coherence penalties for shared data.

Possible Issues

A significant proportion of cycles are being spent on data fetches from caches. Check Memory Access analysis to see if accesses to L2 or L3 caches are problematic and consider applying the same performance tuning as you would for a cache-missing workload. This may include reducing the data working set size, improving data access locality, blocking or partitioning the working set to fit in the lower cache levels, or exploiting hardware prefetchers. Consider using software prefetchers, but note that they can interfere with normal loads, increase latency, and increase pressure on the memory system. This metric includes coherence penalties for shared data. Check Microarchitecture Exploration analysis to see if contested accesses or data sharing are indicated as likely issues.

Clears Resteers

Metric Description

This metric measures the fraction of cycles the CPU was stalled due to Branch Resteers as a result of Machine Clears.

Possible Issues

A significant fraction of cycles could be stalled due to Branch Resteers as a result of Machine Clears.

Clockticks per Instructions Retired (CPI)

Metric Description

Clockticks per Instructions Retired (CPI) event ratio, also known as Cycles per Instructions, is one of the basic performance metrics for the hardware event-based sampling collection, also known as Performance Monitoring Counter (PMC) analysis in the sampling mode. This ratio is calculated by dividing the number of unhalted processor cycles (Clockticks) by the number of instructions retired. On each processor the exact events used to count clockticks and instructions retired may be different, but VTune Profiler knows the correct ones to use.

What is the significance of CPI?

The CPI value of an application or function is an indication of how much latency affected its execution. Higher CPI values mean there was more latency in your system - on average, it took more clockticks for an instruction to retire. Latency in your system can be caused by cache misses, I/O, or other bottlenecks.

When you want to determine where to focus your performance tuning effort, the CPI is the first metric to check. A good CPI rate indicates that the code is executing optimally.

The main way to use CPI is by comparing a current CPI value to a baseline CPI for the same workload. For example, suppose you made a change to your system or your code and then ran the VTune Profiler and collected CPI. If the performance of the application decreased after the change, one way to understand what may have happened is to look for functions where CPI increased. If you have made an optimization that improved the runtime of your application, you can look at VTune Profiler data to see if CPI decreased. If it did, you can use that information to help direct you toward further investigations. What caused CPI to decrease? Was it a reduction in cache misses, fewer memory operations, lower memory latency, and so on.

How do I know when CPI is high?

The CPI of a workload depends both on the code, the processor, and the system configuration.

VTune Profiler analyzes the CPI value against the threshold set up by Intel architects. These numbers can be used as a general guide:

Good	Poor
0.75	4

A CPI < 1 is typical for instruction bound code, while a CPI > 1 may show up for a stall cycle bound application, also likely memory bound.

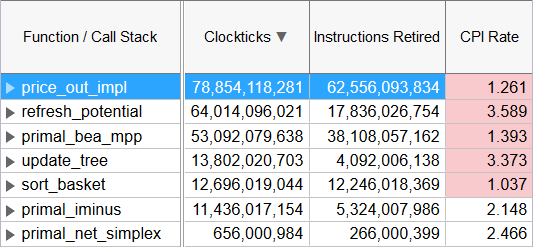

If a CPI value exceeds the threshold, the VTune Profiler highlights this value in pink.

A high value for this ratio (>1) indicates that over the current code region, instructions are taking a high number of processor clocks to execute. This could indicate a problem if most of the instructions are not predominately high latency instructions and/or coming from microcode ROM. In this case there may be opportunities to modify your code to improve the efficiency with which instructions are executed within the processor.

For processors with Inte® Hyper-Threading Technology, this ratio measures the CPI for the phases where the physical package is not in any sleep mode, that is, at least one logical processor in the physical package is in use. Clockticks are continuously counted on logical processors even if the logical processor is in a halted stated (not executing instructions). This can impact the logical processors CPI ratio because the Clockticks event continues to be accumulated while the Instructions Retired event is unchanged. A high CPI value still indicates a performance problem however a high CPI value on a specific logical processor could indicate poor CPU usage and not an execution problem.

If your application is threaded, CPI at all code levels is affected. The Clockticks event counts independently on each logical processors parallel execution is not accounted for.

For example, consider the following:

Function XYZ on logical processor 0 |------------------------| 4000 Clockticks / 1000 Instructions

Function XYZ on logical processor 1 |------------------------| 4000 Clockticks / 1000 Instructions

The CPI for the function XYZ is ( 8000 / 2000 ) 4.0. If parallel execution is taken into account in Clockticks the CPI would be ( 4000 / 2000 ) 2.0. Knowledge of the application behavior is necessary in interpreting the Clockticks event data.

What are the pitfalls of using CPI?

CPI can be misleading, so you should understand the pitfalls. CPI (latency) is not the only factor affecting the performance of your code on your system. The other major factor is the number of instructions executed (sometimes called path length). All optimizations or changes you make to your code will affect either the time to execute instructions (CPI) or the number of instructions to execute, or both. Using CPI without considering the number of instructions executed can lead to an incorrect interpretation of your results. For example, you vectorized your code and converted your math operations to operate on multiple pieces of data at once. This would have the effect of replacing many single-data math instructions with fewer multiple-data math instructions. This would reduce the number of instructions executed overall in your code, but it would likely raise your CPI because multiple-data instructions are more complex and take longer to execute. In many cases, this vectorization would increase your performance, even though CPI went up.

It is important to be aware of your total instructions executed as well. The number of instructions executed is generally called INST_RETIRED in the VTune Profiler. If your instructions retired is remaining fairly constant, CPI can be a good indicator of performance (this is the case with system tuning, for example). If both the number of instructions and CPI are changing, you need to look at both metrics to understand why your performance increased or decreased. Finally, an alternative to looking at CPI is applying the top-down method.

Clockticks Vs. Pipeline Slots Based Metrics

CPI Rate

Metric Description

Cycles per Instruction Retired, or CPI, is a fundamental performance metric indicating approximately how much time each executed instruction took, in units of cycles. Modern superscalar processors issue up to four instructions per cycle, suggesting a theoretical best CPI of 0.25. But various effects (long-latency memory, floating-point, or SIMD operations; non-retired instructions due to branch mispredictions; instruction starvation in the front-end) tend to pull the observed CPI up. A CPI of 1 is generally considered acceptable for HPC applications but different application domains will have very different expected values. Nonetheless, CPI is an excellent metric for judging an overall potential for application performance tuning.

Possible Issues

The CPI may be too high. This could be caused by issues such as memory stalls, instruction starvation, branch misprediction or long latency instructions. Explore the other hardware-related metrics to identify what is causing high CPI.

CPI Rate (Intel Atom® processor)

Metric Description

Cycles per Instructions Retired is a fundamental performance metric indicating an average amount of time each instruction took to execute, in units of cycles. For Intel Atom processors, the theoretical best CPI per thread is 0.50, but CPI's over 2.0 warrant investigation. High CPI values may indicate latency in the system that could be reduced such as long-latency memory, floating-point operations, non-retired instructions due to branch mispredictions, or instruction starvation in the front-end. Beware that some optimizations such as SIMD will use less instructions per cycle (increasing CPI), and debug code can use redundant instructions creating more instructions per cycle (decreasing CPI).

Possible Issues

The CPI may be too high. This could be caused by issues such as memory stalls, instruction starvation, branch misprediction or long latency instructions. Explore the other hardware-related metrics to identify what is causing high CPI.

CPU Time

Metric Description

CPU Time is time during which the CPU is actively executing your application.

Core Bound

Metric Description

This metric represents how much Core non-memory issues were of a bottleneck. Shortage in hardware compute resources, or dependencies software's instructions are both categorized under Core Bound. Hence it may indicate the machine ran out of an OOO resources, certain execution units are overloaded or dependencies in program's data- or instruction- flow are limiting the performance (e.g. FP-chained long-latency arithmetic operations).

CPU Frequency

Metric Description

Frequency calculated with APERF/MPERF MSR registers captured on the clockcycles event.

It is a software frequency showing the average logical core frequency between two samples. The smaller the sampling interval is, the closer the metric is to the real HW frequency.

CPU Time

Metric Description

CPU Time is time during which the CPU is actively executing your application.

CPU Utilization

Metric Description

This metric evaluates the parallel efficiency of your application. It estimates the percentage of all the logical CPU cores in the system that is used by your application -- without including the overhead introduced by the parallel runtime system. 100% utilization means that your application keeps all the logical CPU cores busy for the entire time that it runs.

Depending on the analysis type, you can see the CPU Utilization data in the Bottom-up grid (HPC Performance Characterization), on the Timeline pane, and in the Summary window on the Effective CPU Utilization histogram:

Utilization Histogram

For the histogram, the Intel® VTune™ Profiler identifies a processor utilization scale, calculates the target CPU utilization, and defines default utilization ranges depending on the number of processor cores. You can change the utilization ranges by dragging the sliders, if required.

Utilization Type	Default color	Description
Idle		Idle utilization. By default, if the CPU Time on all threads is less than 0.5 of 100% CPU Time on 1 core, such CPU utilization is classified as idle. Formula: Σ_{i=1,ThreadsCount}(CPUTime(T,i)/T) < 0.5, where CPUTime(T,i) is the total CPU Time on thread i on interval T.
Poor		Poor utilization. By default, poor utilization is when the number of simultaneously running CPUs is less than or equal to 50% of the target CPU utilization.
OK		Acceptable (OK) utilization. By default, OK usage is when the number of simultaneously running CPUs is between 51-85% of the target CPU utilization.
Ideal		Ideal utilization. By default, Ideal utilization is when the number of simultaneously running CPUs is between 86-100% of the target CPU utilization.

VTune Profiler treats the Spin and Overhead time as Idle CPU utilization. Different analysis types may recognize Spin and Overhead time differently depending on availability of call stack information. This may result in a difference of CPU Utilization graphical representation per analysis type.

For the HPC Performance Characterization analysis, the VTune Profiler differentiates Effective Physical Core Utilization vs. Effective Logical Core Utilization for all systems other than Inte® Xeon Phi processors code named Knights Mill and Knights Landing.

For Intel® Xeon Phi processors code named Knights Mill and Knights Landing, as well as systems with Intel Hyper-Threading Technology (Intel HT Technology) OFF, only generic Effective CPU Utilization metric is provided.

CPU Utilization vs. Thread Efficiency

CPU Utilization may be higher than the Thread Efficiency (available for Threading analysis) if a thread is executing code on a CPU while it is logically waiting (that is, the thread is spinning).

CPU Utilization may be lower than the Thread Efficiency if:

The concurrency level is higher than the number of available cores (oversubscription) and, thus, reaching this level of CPU utilization is not possible. Generally, large oversubscription negatively impacts the application performance since it causes excessive context switching.
There was a period when the profiled process was swapped out. Thus, while it was not logically waiting, it was not scheduled for any CPU either.

Possible Issues

The metric value is low, which may signal a poor logical CPU cores utilization caused by load imbalance, threading runtime overhead, contended synchronization, or thread/process underutilization. Explore CPU Utilization sub-metrics to estimate the efficiency of MPI and OpenMP parallelism or run the Threading analysis to identify parallel bottlenecks for other parallel runtimes.

CPU Utilization (OpenMP)

Metric Description

This metric represents how efficiently the application utilized the CPUs available and helps evaluate the parallel efficiency of the application. It shows the percent of average CPU utilization by all logical CPUs on the system. Average CPU utilization contains only effective time and does not contain spin and overhead. A CPU utilization of 100% means that all of the logical CPUs were loaded by computations of the application.

Possible Issues

The metric value is low, which may signal a poor logical CPU cores utilization caused by load imbalance, threading runtime overhead, contended synchronization, or thread/process underutilization. Explore CPU Utilization sub-metrics to estimate the efficiency of MPI and OpenMP parallelism or run the Threading analysis to identify parallel bottlenecks for other parallel runtimes.

Cycles of 0 Ports Utilized

Metric Description

This metric represents a fraction of cycles with no uOps executed by the CPU on any execution port. Long-latency instructions like divides may contribute to this metric.

Possible Issues

CPU executed no uOps on any execution port during a significant fraction of cycles. Long-latency instructions like divides may contribute to this issue. Check the Assembly view and Appendix C in the Optimization Guide to identify instructions with 5 or more cycles latency.

Cycles of 1 Port Utilized

Metric Description

This metric represents cycles fraction where the CPU executed total of 1 uop per cycle on all execution ports. This can be due to heavy data-dependency among software instructions, or oversubscribing a particular hardware resource. In some other cases with high 1_Port_Utilized and L1 Bound, this metric can point to L1 data-cache latency bottleneck that may not necessarily manifest with complete execution starvation (due to the short L1 latency e.g. walking a linked list) - looking at the assembly can be helpful.

Possible Issues

This metric represents cycles fraction where the CPU executed total of 1 uop per cycle on all execution ports. This can be due to heavy data-dependency among software instructions, or oversubscribing a particular hardware resource. In some other cases with high 1_Port_Utilized and L1 Bound, this metric can point to L1 data-cache latency bottleneck that may not necessarily manifest with complete execution starvation (due to the short L1 latency e.g. walking a linked list) - looking at the assembly can be helpful. Note that this metric value may be highlighted due to L1 Bound issue.

Cycles of 2 Ports Utilized

Metric Description

This metric represents cycles fraction CPU executed total of 2 uops per cycle on all execution ports. Tip: Loop Vectorization - most compilers feature auto-Vectorization options today- reduces pressure on the execution ports as multiple elements are calculated with same uop.

Cycles of 3+ Ports Utilized

Metric Description

This metric represents Core cycles fraction CPU executed total of 3 or more uops per cycle on all execution ports.

Divider

Metric Description

Not all arithmetic operations take the same amount of time. Divides and square roots, both performed by the DIV unit, take considerably longer than integer or floating point addition, subtraction, or multiplication. This metric represents cycles fraction where the Divider unit was active.

Possible Issues

The DIV unit is active for a significant portion of execution time.

Tips

Locate the hot long-latency operation(s) and try to eliminate them. For example, if dividing by a constant, consider replacing the divide by a product of the inverse of the constant. If dividing an integer, consider using a right-shift instead.

(Info) DSB Coverage

Metric Description

Fraction of uOps delivered by the DSB (known as Decoded ICache or uOp Cache).

Possible Issues

A significant fraction of uOps was not delivered by the DSB (known as Decoded ICache or uOp Cache). This may happen if a hot code region is too large to fit into the DSB.

Tips

Consider changing the code layout (for example, via profile-guided optimization) to help your hot regions fit into the DSB.

See the "Optimization for Decoded ICache" section in the Intel 64 and IA-32 Architectures Optimization Reference Manual.

DTLB Store Overhead

Metric Description

This metric represents a fraction of cycles spent on handling first-level data TLB store misses. As with ordinary data caching, focus on improving data locality and reducing working-set size to reduce DTLB overhead. Additionally, consider using profile-guided optimization (PGO) to collocate frequently-used data on the same page. Try using larger page sizes for large amounts of frequently-used data.

Effective CPU Utilization

Metric Description

How many of the logical CPU cores are used by your application? This metric helps evaluate the parallel efficiency of your application. It estimates the percentage of all the logical CPU cores in the system that is spent in your application -- without including the overhead introduced by the parallel runtime system. 100% utilization means that your application keeps all the logical CPU cores busy for the entire time that it runs.

Effective Physical Core Utilization

Metric Description

This metric represents how efficiently the application utilized the physical CPU cores available and helps evaluate the parallel efficiency of the application. It shows the percent of average utilization by all physical CPU cores on the system. Effective Physical Core Utilization contains only effective time and does not contain spin and overhead. An utilization of 100% means that all of the physical CPU cores were loaded by computations of the application.

Possible Issues

The metric value is low, which may signal a poor physical CPU cores utilization caused by:

load imbalance
threading runtime overhead
contended synchronization
thread/process underutilization
incorrect affinity that utilizes logical cores instead of physical cores

You are not using a modern vectorization instruction set. Consider recompiling your code using compiler options that allow using a modern vectorization instruction set. See the compiler User and Reference Guide for C++ or Fortran for more details.

Front-End Bandwidth

Metric Description

This metric represents a fraction of slots during which CPU was stalled due to front-end bandwidth issues, such as inefficiencies in the instruction decoders or code restrictions for caching in the DSB (decoded uOps cache). In such cases, the front-end typically delivers a non-optimal amount of uOps to the back-end.

Front-End Bandwidth DSB

Metric Description

This metric represents a fraction of cycles during which CPU was likely limited due to DSB (decoded uop cache) fetch pipeline. For example, inefficient utilization of the DSB cache structure or bank conflict when reading from it, are categorized here.

Front-End Bandwidth LSD

Metric Description

This metric represents a fraction of cycles during which CPU operation was limited by the LSD (Loop Stream Detector) unit. Typically, LSD provides good uOp supply. However, in some rare cases, optimal uOp delivery cannot be reached for small loops whose size (in terms of number of uOps) does not suit well the LSD structure.

Possible Issues

A significant number of CPU cycles is spent waiting for uOps for the LSD (Loop Stream Detector) unit. Typically, LSD provides good uOp support. However, in some rare cases, optimal uOp delivery cannot be reached for small loops whose size (in terms of number of uOps) does not suit well the LSD structure.

Front-End Bandwidth MITE

Metric Description

This metric represents a fraction of cycles during which CPU was stalled due to the MITE fetch pipeline issues, such as inefficiencies in the instruction decoders.

Front-End Bound

Metric Description

Front-End Bound metric represents a slots fraction where the processor's Front-End undersupplies its Back-End. Front-End denotes the first part of the processor core responsible for fetching operations that are executed later on by the Back-End part. Within the Front-End, a branch predictor predicts the next address to fetch, cache-lines are fetched from the memory subsystem, parsed into instructions, and lastly decoded into micro-ops (uOps). Front-End Bound metric denotes unutilized issue-slots when there is no Back-End stall (bubbles where Front-End delivered no uOps while Back-End could have accepted them). For example, stalls due to instruction-cache misses would be categorized as Front-End Bound.

Possible Issues

A significant portion of Pipeline Slots is remaining empty due to issues in the Front-End.

Tips

Make sure the code working size is not too large, the code layout does not require too many memory accesses per cycle to get enough instructions for filling four pipeline slots, or check for microcode assists.

Front-End Other

Metric Description

This metric accounts for those slots that were not delivered by the front-end and do not count as a common front-end stall.

Possible Issues

The front-end did not deliver a significant portion of pipeline slots that do not classify as a common front-end stall.

Branch Resteers

Metric Description

This metric represents cycles fraction the CPU was stalled due to Branch Resteers.

Possible Issues

A significant fraction of cycles was stalled due to Branch Resteers. Branch Resteers estimate the Front-End delay in fetching operations from corrected path, following all sorts of mispredicted branches. For example, branchy code with lots of mispredictions might get categorized as Branch Resteers. Note the value of this node may overlap its siblings.

DSB Switches

Metric Description

Intel microarchitecture code name Sandy Bridge introduces a new decoded ICache. This cache, called the DSB (Decoded Stream Buffer), stores uOps that have already been decoded, avoiding many of the penalties of the legacy decode pipeline, called the MITE (Micro-instruction Translation Engine). However, when control flows out of the region cached in the DSB, the front-end incurs a penalty as uOp issue switches from the DSB to the MITE. This metric measures this penalty.

Possible Issues

A significant portion of cycles is spent switching from the DSB to the MITE. This may happen if a hot code region is too large to fit into the DSB.

Tips

Consider changing code layout (for example, via profile-guided optimization) to help your hot regions fit into the DSB.

See the "Optimization for Decoded ICache" section in the Intel 64 and IA-32 Architectures Optimization Reference Manual for more details.

ICache Misses

Metric Description

To introduce new uOps into the pipeline, the core must either fetch them from a decoded instruction cache, or fetch the instructions themselves from memory and then decode them. In the latter path, the requests to memory first go through the L1I (level 1 instruction) cache that caches the recent code working set. Front-end stalls can accrue when fetched instructions are not present in the L1I. Possible reasons are a large code working set or fragmentation between hot and cold code. In the latter case, when a hot instruction is fetched into the L1I, any cold code on its cache line is brought along with it. This may result in the eviction of other, hotter code.

Possible Issues

A significant proportion of instruction fetches are missing in the instruction cache.

Tips

1. Use profile-guided optimization to reduce the size of hot code regions.

2. Consider compiler options to reorder functions so that hot functions are located together.

3. If your application makes significant use of macros, try to reduce this by either converting the relevant macros to functions or using linker options to eliminate repeated code.

4. Consider the Os/O1 optimization level or the following subset of optimizations to decrease your code footprint:

Use inlining only when it decreases the footprint.
Disable loop unrolling.
Disable intrinsic inlining.

ITLB Overhead

Metric Description

In x86 architectures, mappings between virtual and physical memory are facilitated by a page table, which is kept in memory. To minimize references to this table, recently-used portions of the page table are cached in a hierarchy of 'translation look-aside buffers', or TLBs, which are consulted on every virtual address translation. As with data caches, the farther a request has to go to be satisfied, the worse the performance impact. This metric estimates the performance penalty of page walks induced on ITLB (instruction TLB) misses.

Possible Issues

A significant proportion of cycles is spent handling instruction TLB misses.

Tips

1. Use profile-guided optimization and IPO to reduce the size of hot code regions.

2. Consider compiler options to reorder functions so that hot functions are located together.

3. If your application makes significant use of macros, try to reduce this by either converting the relevant macros to functions or using linker options to eliminate repeated code.

4. For Windows targets, add function splitting.

5. Consider using large code pages.

Length Changing Prefixes

Metric Description

This metric represents a fraction of cycles during which CPU was stalled due to Length Changing Prefixes (LCPs). To avoid this issue, use proper compiler flags. Intel Compiler enables these flags by default.

Possible Issues

This metric represents a fraction of cycles during which CPU was stalled due to Length Changing Prefixes (LCPs).

Tips

To avoid this issue, use proper compiler flags. Intel Compiler enables these flags by default.

See the "Length-Changing Prefixes (LCP)" section in the Intel 64 and IA-32 Architectures Optimization Reference Manual.

MS Switches

Metric Description

This metric represents a fraction of cycles when the CPU was stalled due to switches of uop delivery to the Microcode Sequencer (MS). Commonly used instructions are optimized for delivery by the DSB or MITE pipelines. Certain operations cannot be handled natively by the execution pipeline, and must be performed by microcode (small programs injected into the execution stream). Switching to the MS too often can negatively impact performance. The MS is designated to deliver long uOp flows required by CISC instructions like CPUID, or uncommon conditions like Floating Point Assists when dealing with Denormals.

Possible Issues

A significant fraction of cycles was stalled due to switches of uOp delivery to the Microcode Sequencer (MS). Commonly used instructions are optimized for delivery by the DSB or MITE pipelines. Certain operations cannot be handled natively by the execution pipeline, and must be performed by microcode (small programs injected into the execution stream). Switching to the MS too often can negatively impact performance. The MS is designated to deliver long uOp flows required by CISC instructions like CPUID, or uncommon conditions like Floating Point Assists when dealing with Denormals. Note that this metric value may be highlighted due to Microcode Sequencer issue.

Front-End Latency

Metric Description

This metric represents a fraction of slots during which CPU was stalled due to front-end latency issues, such as instruction-cache misses, ITLB misses or fetch stalls after a branch misprediction. In such cases, the front-end delivers no uOps.

General Retirement

Metric Description

This metric represents a fraction of slots during which CPU was retiring uOps not originated from the Microcode Sequencer. This correlates with the total number of instructions executed by the program. A uOps-per-Instruction ratio of 1 is expected. While this is the most desirable of the top 4 categories, high values may still indicate areas for improvement. If possible focus on techniques that reduce instruction count or result in more efficient instructions generation such as vectorization.

Hardware Event Count

The time while threads were preempted by the system and remained inactive.

Inactive Wait Count

Metric Description

Inactive Wait Count is the number of context switches a thread experiences when it is excluded from execution by the OS scheduler due to either synchronization or preemption. Excessive number of thread context switches may negatively impact application performance. Reduce synchronization contention to minimize synchronization context switches, or eliminate thread oversubscription to minimize thread preemption.

Inactive Wait Time

Metric Description

This metric estimates how often memory load accesses were aliased by preceding stores (in the program order) with a 4K address offset. Possible false match may incur a few cycles to re-issue a load. However, a short re-issue duration is often hidden by the out-of-order core and HW optimizations. Hence, you may safely ignore a high value of this metric unless it propagates up into parent nodes of the hierarchy (for example, to L1_Bound).

Possible Issues

A significant proportion of cycles is spent dealing with false 4k aliasing between loads and stores.

Tips

Use the source/assembly view to identify the aliasing loads and stores, and then adjust your data layout so that the loads and stores no longer alias. See the Intel 64 and IA-32 Architectures Optimization Reference Manual for more details.

DTLB Overhead

Metric Description

In x86 architectures, mappings between virtual and physical memory are facilitated by a page table, which is kept in memory. To minimize references to this table, recently-used portions of the page table are cached in a hierarchy of 'translation look-aside buffers', or TLBs, which are consulted on every virtual address translation. As with data caches, the farther a request has to go to be satisfied, the worse the performance impact. This metric estimates the performance penalty paid for missing the first-level data TLB (DTLB) that includes hitting in the second-level data TLB (STLB) as well as performing a hardware page walk on an STLB miss.

Possible Issues

A significant proportion of cycles is being spent handling first-level data TLB misses.

Tips

1. As with ordinary data caching, focus on improving data locality and reducing the working-set size to minimize the DTLB overhead.

2. Consider using profile-guided optimization (PGO) to collocate frequently-used data on the same page.

3. Try using larger page sizes for large amounts of frequently-used data.

FB Full

Metric Description

This metric does a rough estimation of how often L1D Fill Buffer unavailability limited additional L1D miss memory access requests to proceed. The higher the metric value, the deeper the memory hierarchy level the misses are satisfied from. Often it hints on approaching bandwidth limits (to L2 cache, L3 cache or external memory).

Possible Issues

This metric does a rough estimation of how often L1D Fill Buffer unavailability limited additional L1D miss memory access requests to proceed. The higher the metric value, the deeper the memory hierarchy level the misses are satisfied from. Often it hints on approaching bandwidth limits (to L2 cache, L3 cache or external memory). Avoid adding software prefetches if indeed memory BW limited.

Loads Blocked by Store Forwarding

Metric Description

To streamline memory operations in the pipeline, a load can avoid waiting for memory if a prior store, still in flight, is writing the data that the load wants to read (a 'store forwarding' process). However, in some cases, generally when the prior store is writing a smaller region than the load is reading, the load is blocked for a signficant time pending the store forward. This metric measures the performance penalty of such blocked loads.

Possible Issues

Loads are blocked during store forwarding for a significant proportion of cycles.

Tips

Use source/assembly view to identify the blocked loads, then identify the problematically-forwarded stores, which will typically be within the ten dynamic instructions prior to the load. If the forwarding store is smaller than the load, change the store to be the same size as the load.

Lock Latency

Metric Description

This metric represents cycles fraction the CPU spent handling cache misses due to lock operations. Due to the microarchitecture handling of locks, they are classified as L1 Bound regardless of what memory source satisfied them.

Possible Issues

A significant fraction of CPU cycles spent handling cache misses due to lock operations. Due to the microarchitecture handling of locks, they are classified as L1 Bound regardless of what memory source satisfied them. Note that this metric value may be highlighted due to Store Latency issue.

Split Loads

Metric Description

Throughout the memory hierarchy, data moves at cache line granularity - 64 bytes per line. Although this is much larger than many common data types, such as integer, float, or double, unaligned values of these or other types may span two cache lines. Recent Intel architectures have significantly improved the performance of such 'split loads' by introducing split registers to handle these cases, but split loads can still be problematic, especially if many split loads in a row consume all available split registers.

Metric Description

A total number of L2 allocations. This metric accounts for both demand loads and HW prefetcher requests.

L2 Miss Bound

Metric Description

The L2 is the last and longest-latency level in the memory hierarchy before the main memory (DRAM) or MCDRAM. Any memory requests missing here must be serviced by local or remote DRAM or MCDRAM, with significant latency. The L2 Miss Bound metric shows a ratio of cycles spent handling L2 misses to all cycles. The cycles spent handling L2 misses are calculated as L2 CACHE MISS COST * L2 CACHE MISS COUNT where L2 CACHE MISS COST is a constant measured as typical DRAM access latency in cycles.

Possible Issues

A high number of CPU cycles is being spent waiting for L2 load misses to be serviced.

Tips

1. Reduce the data working set size, improve data access locality, blocking and consuming data in chunks that fit into the L2, or better exploit hardware prefetchers.

Significant data sharing by different cores is detected.

Tips

1. Examine the Contested Accesses metric to determine whether the major component of data sharing is due to contested accesses or simple read sharing. Read sharing is a lower priority than Contested Accesses or issues such as LLC Misses and Remote Accesses.

2. If simple read sharing is a performance bottleneck, consider changing data layout across threads or rearranging computation. However, this type of tuning may not be straightforward and could bring more serious performance issues back.

L3 Latency

Metric Description

This metric shows a fraction of cycles with demand load accesses that hit the L3 cache under unloaded scenarios (possibly L3 latency limited). Avoiding private cache misses (i.e. L2 misses/L3 hits) will improve the latency, reduce contention with sibling physical cores and increase performance. Note the value of this node may overlap with its siblings.

LLC Hit

Metric Description

The LLC (last-level cache) is the last, and longest-latency, level in the memory hierarchy before main memory (DRAM). While LLC hits are serviced much more quickly than hits in DRAM, they can still incur a significant performance penalty. This metric also includes coherence penalties for shared data.

Possible Issues

Metric Description

Certain events require the entire pipeline to be cleared and restarted from just after the last retired instruction. This metric measures three such events: memory ordering violations, self-modifying code, and certain loads to illegal address ranges. Machine Clears metric represents slots fraction the CPU has wasted due to Machine Clears. These slots are either wasted by uOps fetched prior to the clear, or stalls the out-of-order portion of the machine needs to recover its state after the clear.

Possible Issues

A significant portion of execution time is spent handling machine clears.

Tips

Examine the MACHINE_CLEARS events to determine the specific cause. See the "Memory Disambiguation" section in the Intel 64 and IA-32 Architectures Optimization Reference Manual for more details.

Max DRAM Single-Package Bandwidth

Metric Description

Metric Description

This metric represents a fraction of cycles during which an application could be stalled due to approaching bandwidth limits of the main memory (DRAM). This metric does not aggregate requests from other threads/cores/sockets (see Uncore counters for that). Consider improving data locality in NUMA multi-socket systems.

Possible Issues

A significant fraction of cycles were stalled due to to approaching bandwidth limits of the main memory (DRAM).

Tips

Improve data accesses to reduce cacheline transfers from/to memory using these possible techniques:

Consume all bytes of each cacheline before it is evicted (for example, reorder structure elements and split non-hot ones).
Merge compute-limited and bandwidth-limited loops.
Use NUMA optimizations on a multi-socket system.

NOTE:

Software prefetches do not help a bandwidth-limited application.

Memory Bound

Metric Description

This metric shows how memory subsystem issues affect the performance. Memory Bound measures a fraction of slots where pipeline could be stalled due to demand load or store instructions. This accounts mainly for incomplete in-flight memory demand loads that coincide with execution starvation in addition to less common cases where stores could imply back-pressure on the pipeline.

Possible Issues

The metric value is high. This can indicate that the significant fraction of execution pipeline slots could be stalled due to demand memory load and stores. Use Memory Access analysis to have the metric breakdown by memory hierarchy, memory bandwidth information, correlation by memory objects.

DRAM Bound

Metric Description

Metric Description

This metric shows how often CPU was stalled on loads from local memory. Caching will improve the latency and increase performance.

Possible Issues

The number of CPU stalls on loads from the local memory exceeds the threshold. Consider caching data to improve the latency and increase the performance.

Remote Cache

Metric Description

This metric shows how often CPU was stalled on loads from remote cache in other sockets. This is caused often due to non-optimal NUMA allocations.

Possible Issues

The number of CPU stalls on loads from the remote cache exceeds the threshold. This is often caused by non-optimal NUMA memory allocations.

Remote DRAM

Metric Description

This metric shows how often CPU was stalled on loads from remote memory. This is caused often due to non-optimal NUMA allocations.

1. Make sure the /arch compiler flags are correct.

2. Check the child Assists metric and, if it is highlighted as an issue, follow the provided recommendations.

Note that this metric value may be highlighted due to MS Switches issue.

Mispredicts Resteers

Metric Description

This metric measures the fraction of cycles the CPU was stalled due to Branch Resteers as a result of Branch Misprediction at execution stage.

Possible Issues

A significant fraction of cycles could be stalled due to Branch Resteers as a result of Branch Misprediction at execution stage.

MO Machine Clear Overhead

Metric Description

Certain events require the entire pipeline to be cleared and restarted from just after the last retired instruction. This metric estimates the overhead of machine clears due to Memory Ordering. The memory ordering (MO) machine clear happens when a snoop request from another processor matches a source for a data operation in the pipeline. In this situation the pipeline is cleared before the loads and stores in progress are retired. Then the pipeline is restarted from the previous retired instruction, ensuring that memory ordering of loads and stores can be preserved, both within one core and across cores. Memory ordering issues cause a severe penalty in all processors based on Intel architecture.

Possible Issues

A significant portion of execution time is spent clearing the machine to handle memory ordering requirements. To avoid this, reorder your load and store instructions, particularly loads and stores of data that is shared, or reduce sharing requirements.

MPI Imbalance

Metric Description

MPI Imbalance shows the CPU time spent by ranks spinning in waits on communication operations, normalized by the number of ranks. High metric value can be caused by application workload imbalance between ranks, nonoptimal communication schema or settings of MPI library. Explore details on communication inefficiencies with Intel Trace Analyzer and Collector.

MPI Rank on the Critical Path

Metric Description

The section contains metrics for the rank with minimum MPI Busy Wait time that is on the critical path of application execution on this node. Consider exploring CPU utilization efficiency for this rank.

MS Entry

Metric Description

This metric estimates a fraction of cycles lost due to the Microcode Sequencer entry.

Possible Issues

A significant number of CPU cycles lost due to the Microcode Sequencer entry.

MUX Reliability

Metric Description

This metric estimates reliability of HW event-related metrics. Since the number of collected HW events exceeds the number of counters, Intel® VTune™ Profiler uses event multiplexing (MUX) to share HW counters and collect different subsets of events over time. This may affect the precision of collected event data. The ideal value for this metric is 1. If the value is less than 0.7, the collected data may be not reliable.

Possible Issues

Precision of collected HW event data is not enough. Metrics data may be unreliable. Consider increasing your application execution time, using the multiple runs mode instead of event multiplexing, or creating a custom analysis with a limited subset of HW events. If you are using a driverless collection, consider reducing the value of /sys/bys/event_source/devices/cpu/perf_event_mux_interval_ms file.

NOTE:

A high value for this metric does not guarantee an accuracy of the hardware-based metrics. However, a low value definitely puts the metrics in question and you should re-run the analysis using the Allow multiple runs option or increase the execution time to improve the accuracy.

OpenMP* Analysis. Collection Time

Metric Description

Collection Time is wall time from the beginning to the end of collection, excluding Paused Time.

OpenMP Region Time

Metric Description

Metric Description

Parallel Region Time is the total duration for all instances of all lexical parallel regions. Percent value is based on Collection Time.

Paused Time

Metric Description

Paused time is the amount of Elapsed time during which the analysis was paused using either the GUI, CLI commands, or user API.

Persistent Memory Bound

Metric Description

This metric estimates how frequently the CPU was stalled on accesses to external Intel Optane DC Persistent Memory by loads. This metric is defined on machines with Intel Optane DC Persistent Memory App Direct Mode.

Pipeline Slots

Metric Description

A pipeline slot represents hardware resources needed to process one uOp.

The Top-Down Characterization assumes that for each CPU core, on each clock cycle, there are several pipeline slots available. This number is called Pipeline Width.

OpenMP* Potential Gain

Metric Description

Potential Gain shows the maximum time that could be saved if the OpenMP region is optimized to have no load imbalance assuming no runtime overhead (Parallel Region Time minus Region Ideal Time). If the Potential Gain is large, make sure the workload for this region is enough and the loop schedule is optimal.

VTune Profiler uses the following methodology to calculate the Potential Gain metric that is a sum of inefficiencies normalized by the number of threads:

Possible Issues

The time wasted on load imbalance or parallel work arrangement is significant and negatively impacts the application performance and scalability. Explore OpenMP regions with the highest metric values. Make sure the workload of the regions is enough and the loop schedule is optimal.

Imbalance

Metric Description

OpenMP Potential Gain Imbalance shows maximum elapsed time that could be saved if the OpenMP construct is optimized to have no imbalance. It is calculated as summary of CPU time by all OpenMP threads spinning on a barrier divided by the number of OpenMP threads.

Possible Issues

Significant time spent waiting on an OpenMP barrier inside of a parallel region can be a result of load imbalance. Consider using dynamic work scheduling to reduce the imbalance, where possible.

Lock Contention

Metric Description

OpenMP Potential Gain Lock Contention shows elapsed time cost of OpenMP locks and ordered synchronization. High metric value may signal inefficient parallelization with highly contended synchronization objects. To avoid intensive synchronization, consider using reduction, atomic operations or thread local variables where possible. This metric is based on CPU sampling and does not include passive waits.

Possible Issues

When synchronization objects are used inside a parallel region, threads can spend CPU time waiting on a lock release, contending with other threads for a shared resource. Where possible, reduce synchronization by using reduction or atomic operations, or minimize the amount of code executed inside the critical section.

Pre-Decode Wrong

Metric Description

This metric estimates a fraction of cycles lost due to the decoder predicting wrong instruction length.

Possible Issues

A significant number of CPU cycles lost due to the decoder predicting wrong instruction length.

Remote Cache Access Count

Metric Description

Metric Description

Retiring metric represents a Pipeline Slots fraction utilized by useful work, meaning the issued uOps that eventually get retired. Ideally, all Pipeline Slots would be attributed to the Retiring category. Retiring of 100% would indicate the maximum possible number of uOps retired per cycle has been achieved. Maximizing Retiring typically increases the Instruction-Per-Cycle metric. Note that a high Retiring value does not necessary mean no more room for performance improvement. For example, Microcode assists are categorized under Retiring. They hurt performance and can often be avoided.

Possible Issues

A high fraction of pipeline slots was utilized by useful work.

Tips

While the goal is to make this metric value as big as possible, a high Retiring value for non-vectorized code could prompt you to consider code vectorization. Vectorization enables doing more computations without significantly increasing the number of instructions, thus improving the performance. Note that this metric value may be highlighted due to Microcode Sequencer (MS) issue, so the performance can be improved by avoiding using the MS.

Self Time and Total Time

Self Time

Self time is the time spent in a particular program unit. For example, Self time for a source line shows the time the application spent at this particular source line. Self time can help you understand the impact that a function has on the program. Investigating the impact of single functions is also known as bottom-up analysis.

For example, in a single-threaded program with negligible Wait time, the Self time for the function foo() is 10% of the program CPU time. If you optimize foo() so that it is twice as fast, the Elapsed time for the program improves by 5%.

The impact of Self time on the Elapsed time of a parallel application depends on the utilization of different threads. Reducing the time that a given function runs to zero may have no impact on the Elapsed time of the application

Total Time

Total time is the accumulated time that a program unit incurs. For functions, Total time includes Self time of the function itself and Self time of all functions that were called from that function. Total time enables a high-level understanding of how time is spent in the application. Investigating the impact of functions together with their callees is also known as top-down analysis.

Serial CPU Time

Metric Description

Serial CPU Time is the CPU time (compare with Serial Time outside parallel regions) spent by the application outside any OpenMP region in the master thread during collection. It directly impacts application Collection Time and scaling. High values signal a performance problem to be solved via code parallelization or algorithm tuning.

MPI Busy Wait Time

Metric Description

MPI Busy Wait Time is CPU time when MPI runtime library is spinning on waits in communication operations. High metric value can be caused by load imbalance between ranks, active communications or nonoptimal settings of MPI library. Explore details on communication inefficiencies with Intel® Trace Analyzer and Collector.

Possible Issues

Metric Description

This metric provides the ratio of SIMD compute instructions to the total number of memory loads, each of which will first access the L1 cache. On this platform, it is important that this ratio is large to ensure efficient usage of compute resources.

SIMD Compute-to-L2 Access Ratio

Metric Description

Metric Description

Metric Description

This metric shows unclassified Spin time spent in a threading runtime library.

Spin and Overhead Time

Overhead Time

Overhead time is the time the system takes to deliver a shared resource from a releasing owner to an acquiring owner. Ideally, the Overhead time should be close to zero because it means the resource is not being wasted through idleness. However, not all CPU time in a parallel application may be spent on doing real payload work. In cases when a parallel runtime (for example, Intel® Threading Building Blocks, Intel® Cilk™, OpenMP*) is used inefficiently, a significant portion of time may be spent inside the parallel runtime wasting CPU time at high concurrency levels. For example, if you increase the number of threads performing some fixed load of work in parallel, each thread gets less work and the overhead, as a relative measure, will get larger. It is a basic application of Amdahl's Law.

To detect this wasted CPU time, Intel® VTune™ Profiler analyzes the call stack at the point of interest and computes the Overhead time performance metric. VTune Profiler classifies the stack layers into user, system, and overhead layers and attributes the CPU time spent in system functions called by overhead functions to the overhead functions.

Spin Time

Spin time is the Wait time during which the CPU is busy. This often occurs when a synchronization API causes the CPU to poll while the software thread is waiting. Some Spin time may be preferable to the alternative of increased thread context switches. Too much Spin time, however, can reflect lost opportunity for productive work.

Overhead and Spin Time

VTune Profiler provides the combined Overhead and Spin Time metric in the grid and Timeline view of the Hotspots by CPU Utilization, Hotspots by Thread Concurrency, and Hotspots viewpoints. This metric represents the sum of the Overhead and Spin time values calculated as CPU Time where Call Site Type is Overhead + CPU Time where Call Site Type is Synchronization. To view the Overhead and Spin time values separately, expand the column by clicking the symbol.

NOTE:

VTune Profiler ignores the Overhead and Spin time when calculating the CPU Utilization metric.

Possible Issues

A significant portion of CPU time is spent in synchronization or threading overhead. Consider increasing task granularity or the scope of data synchronization.

Atomics

Metric Description

Atomics time is CPU time that a runtime library spends on atomic operations.

Possible Issues

CPU time spent on atomic operations is significant. Consider using reduction operations where possible.

Creation

Metric Description

Creation time is CPU time that a runtime library spends on organizing parallel work.

Possible Issues

Metric Description

Tasking time is CPU time that a runtime library spends on allocating and completing tasks.

Split Stores

Metric Description

Throughout the memory hierarchy, data moves at cache line granularity - 64 bytes per line. Although this is much larger than many common data types, such as integer, float, or double, unaligned values of these or other types may span two cache lines. Recent Intel architectures have significantly improved the performance of such 'split stores' by introducing split registers to handle these cases. But split stores can still be problematic, especially if they consume split registers which could be servicing other split loads.

Possible Issues

A significant portion of cycles is spent handling split stores.

Tips

Consider aligning your data to the 64-byte cache line granularity.

Note that this metric value may be highlighted due to Port 4 issue.

Store Bound

Metric Description

This metric shows how often CPU was stalled on store operations. Even though memory store accesses do not typically stall out-of-order CPUs there are few cases where stores can lead to actual stalls.

Possible Issues

CPU was stalled on store operations for a significant fraction of cycles.

Tips

Consider False Sharing analysis as your next step.

Store Latency

Metric Description

This metric represents cycles fraction the CPU spent handling long-latency store misses (missing 2nd level cache).

Possible Issues

This metric represents a fraction of cycles the CPU spent handling long-latency store misses (missing the 2nd level cache). Consider avoiding/reducing unnecessary (or easily loadable/computable) memory store. Note that this metric value may be highlighted due to a Lock Latency issue.

Task Time

Metric Description

Total amount of time spent within a task.

Thread Concurrency

Thread Oversubscription

Metric Description

Thread Oversubscription indicates time spent in the code with the number of simultaneously working threads more than the number of available logical cores on the system.

Possible Issues

Significant amount of time application spent in thread oversubscription. This can negatively impact parallel performance because of thread preemption and context switch cost.

Total Iteration Count

Metric Description

Statistical estimation of the total loop iteration count. Values of this metric are not aggregated per call stack filter mode.

[uOps]

Metric Description

uOp, or micro-op, is a low-level hardware operation. The CPU Front-End is responsible for fetching the program code represented in architectural instructions and decoding them into one or more uOps.

VPU Utilization

Metric Description

This metric measures the fraction of micro-ops that performed packed vector operations of any vector length and any mask. VPU utilization metric can be used in conjunction with the compiler's vectorization report to assess VPU utilization and to understand the compiler's judgement about the code. Note that this metric does not account for loads and stores and does not take into consideration vector length as well as masking. Includes integer packed simd.

Possible Issues

This metric measures the fraction of micro-ops that performed packed vector operations of any vector length and any mask. VPU utilization metric can be in conjunction with the compiler's vectorization report to assess VPU utilization and to understand the compiler's judgement about the code. Note that this metric does not account for loads and stores and does not take into consideration vector length as well as masking. This metric includes integer packed SIMD.

Wait Count

Metric Description

Wait Count measures the number of times software threads wait due to APIs that block or cause synchronization.

Wait Rate

Metric Description

Average Wait time (in milliseconds) per synchronization context switch. Low metric value may signal an increased contention between threads and inefficient use of system API.

Possible Issues

The average Wait time is too low. This could be caused by small timeouts, high contention between threads, or excessive calls to system synchronization functions. Explore the call stack, the timeline, and the source code to identify what is causing low wait time per synchronization context switch.

Wait Time

Metric Description

Wait Time occurs when software threads are waiting due to APIs that block or cause synchronization. Wait Time is per-thread, therefore the total Wait Time can exceed the application Elapsed Time.

Using Intel.com Search

Quick Links

Recent Searches

Advanced Search

Only search in

Intel® VTune™ Profiler User Guide
