3.2.2. Building LiteRT for Microcontroller Static Library

You must build LiteRT for Microcontroller libraries in Linux environments. If you are using Windows OS, you can invoke Windows* Subsystem for Linux* (WSL) within Nios V Command Shell.
Run the following commands:
$ sudo apt update
$ sudo apt install make git python3 unzip python3-pip
$ pip3 install numpy Image
$ git clone --depth 1 https://github.com/tensorflow/tflite-micro.git
$ cd tflite-micro
$ python3 tensorflow/lite/micro/tools/project_generation/create_tflm_tree.py\
 -e hello_world tflite_app
Note: Change Directory command (cd) to tflite-micro is mandatory. The execution of create_tflm_tree.py Python script fails when it is executed from different directory.
Figure 14. Content of the tflite_app Folder
Altera recommends you complete the following tasks:
  • Review the Hello World TinyML example in the examples folder. It is a prediction model on the sine function. For more information, refer to LiteRT – Hello World Example and LiteRT - Get started with microcontrollers.
  • Modify the micro_time.cc to be compatible with the Nios® V processor. You can find the source code micro_time.cc in tensorflow\lite\micro folder. For more information, refer to LiteRT - Porting to a new platform.

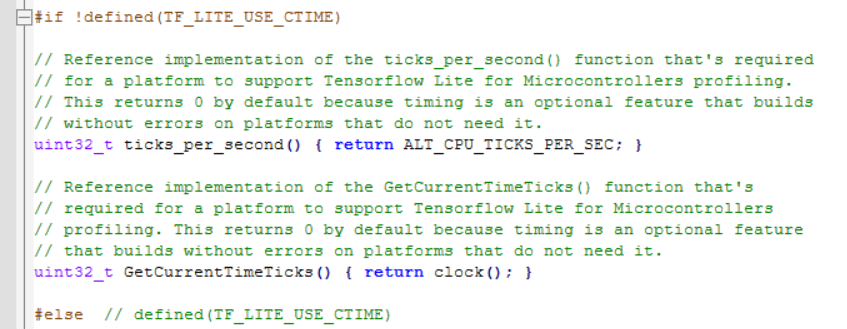

Figure 15. Modification on micro_time.cc
