5.5.1. Test Procedure

Follow these steps to test the design examples in hardware:

  1. Click Tools > System Debugging Tools > System Console or run command: system-console &.
  2. Navigate to the hardware design directory: <design_example>/LL10G_2_5G_SM_1588v2/hwtesting/system_consolem.
  3. Run the following command in the System Console:
    1. source main.tcl
    2. set_jtag <select_appropriate_jtag_master>
    Note: The set_jtag command places the Agilex™ 5 device on the JTAG chain.
  4. Run the following commands in the system console to start the test:

    TEST_EXT_LB <from_channel> <to_channel> <speed>

    Example: TEST_1588 0 0 2.5G

    Note: You must connect the external loopback module QSFP28 to bank 1A before running the test.
    Table 19.  Command Parameters
    Parameter Valid Values Description
    channel 0 The channel number to test.
    speed 2.5G The PHY speed.
    Note:
    1. You must connect the external loopback module to the desired QSFP1 port before running the test.
    2. Burst size is random.
    3. Single channel is supported.

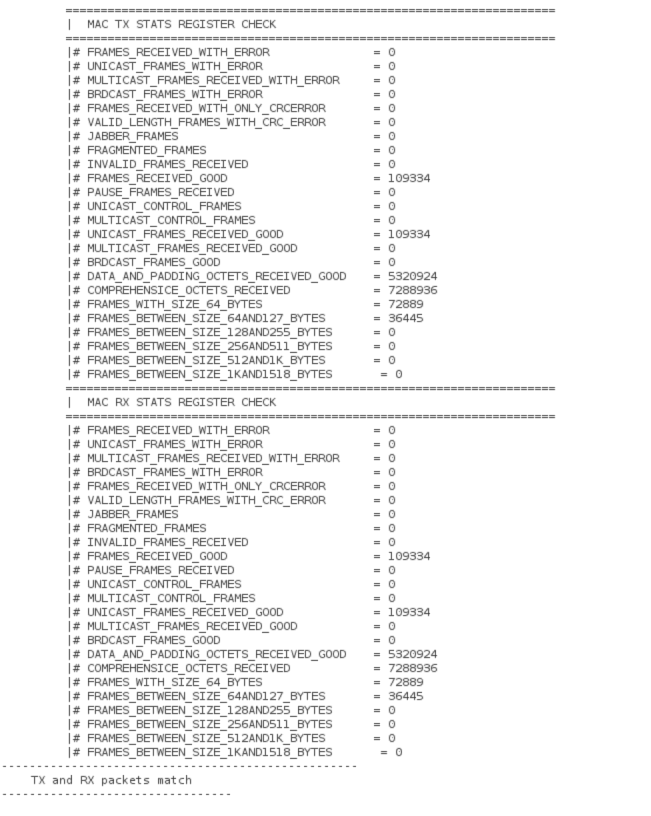

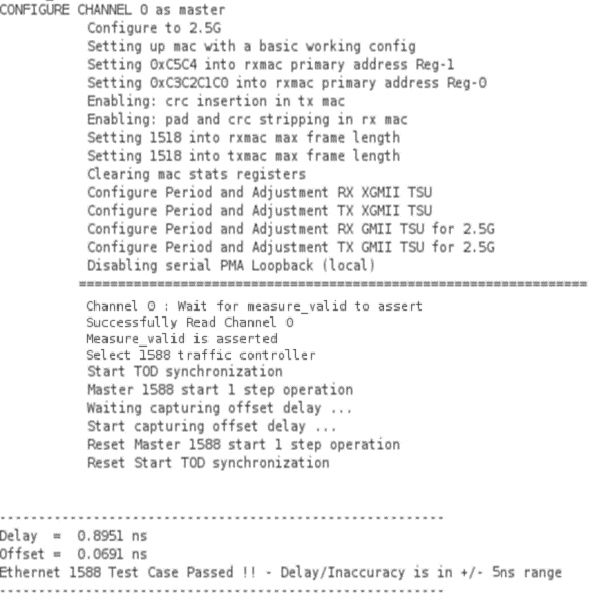

  5. The following sample output illustrate a successful hardware test run:
    Figure 27. Sample Test Output
