8.5.1. Test Procedure

Follow these steps to test the design examples in hardware:

  1. Click Tools > System Debugging Tools > System Console or run command: system-console &.
  2. Navigate to the hardware design directory: <design_example>/LL10G_10G_USXGMII_SM_1588v2/hwtesting/system_console_fm.
  3. Run the following command in the System Console:
    1. source main.tcl
    2. set_jtag <select_appropriate_jtag_master>
    Note: The set_jtag command places the Agilex™ 5 device on the JTAG chain.
  4. Run one of the following commands in the system console to start the test:
    1. If you want to trigger the test for a specific datarate and channel:

      TEST_1588 <from_channel> <to_channel> <speed>

      Example: TEST_1588 0 0 1G
      Note: You must connect the external loopback module QSFP28 to bank 1A before running the test.
      Table 31.  Command Parameters
      Parameter Valid Values Description
      channel 0 The channel number to test.
      speed 100M, 1G, 2P5G, 5G, 10G The PHY speed.
      Note:
      1. You must connect the external loopback module to the desired QSFP1 port before running the test.
      2. Burst size is random.
      3. Single channel is supported.
  5. The following sample output illustrate a successful hardware test run:

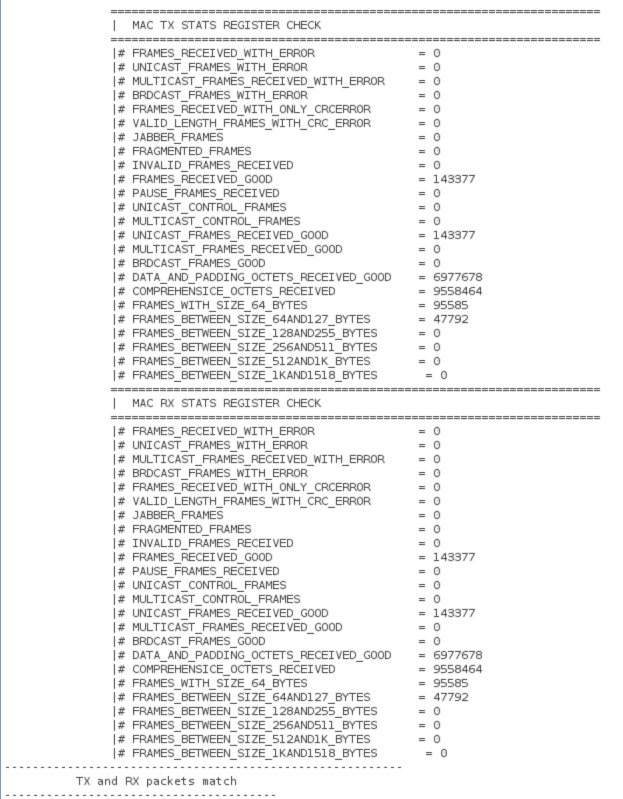

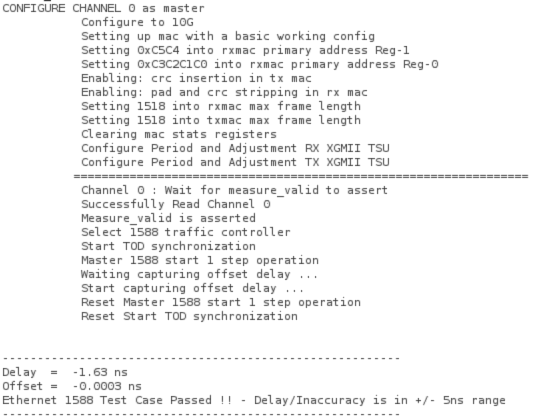

    Figure 43. Sample Test Output
