5. Simulink Simulation Results
The simulation results for the Three-phase Boost Bidirectional AC-DC and LLC DC-DC Converter for EV Charging design example are from the bidir_rectifier_dcdc.slx model that is in the matlab/Simulink directory.

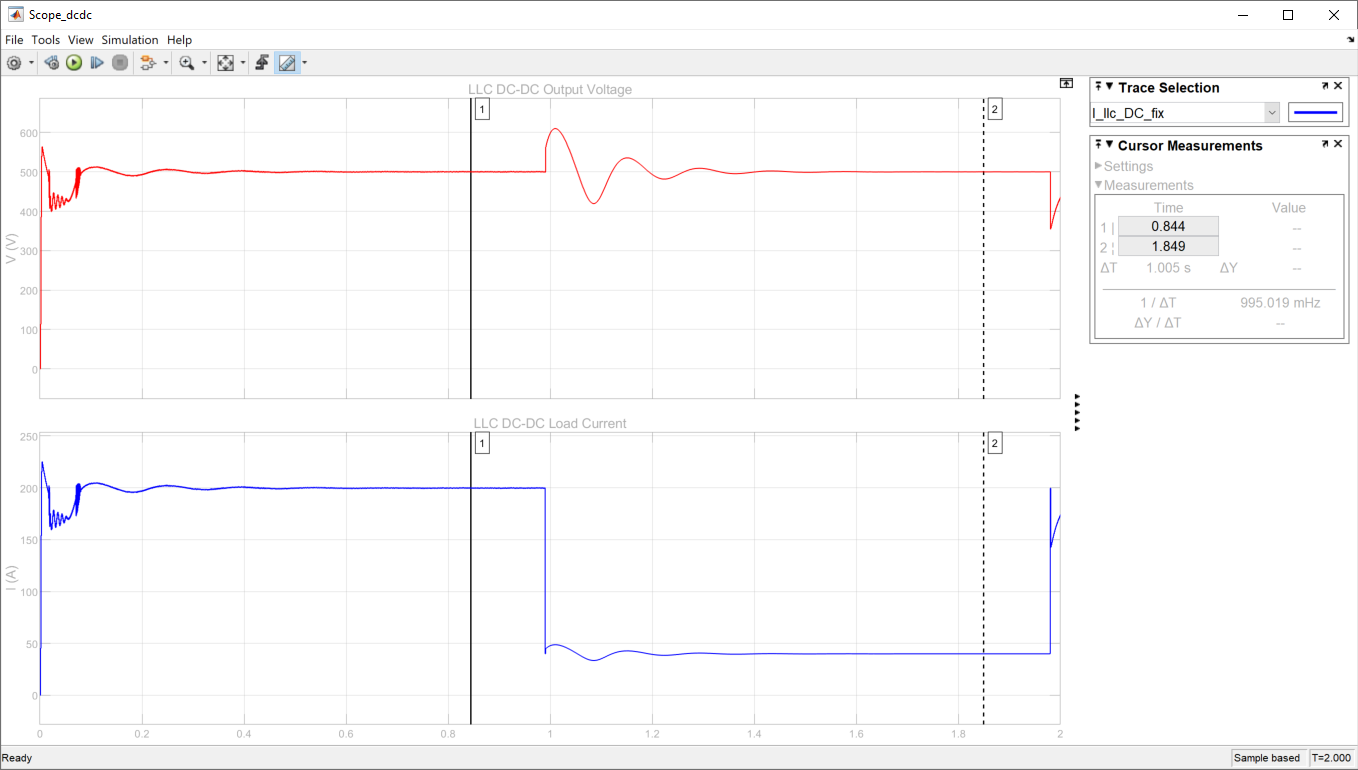

Figure 26. Load Changes in Simulink SimulationThe figure shows how the variation in the output load immediately gives variation in the load current. By changing the output load, you can evaluate the system response. In this simulation, the load current constantly changes from ~40 A to ~200 A to evaluate the output voltage response time.

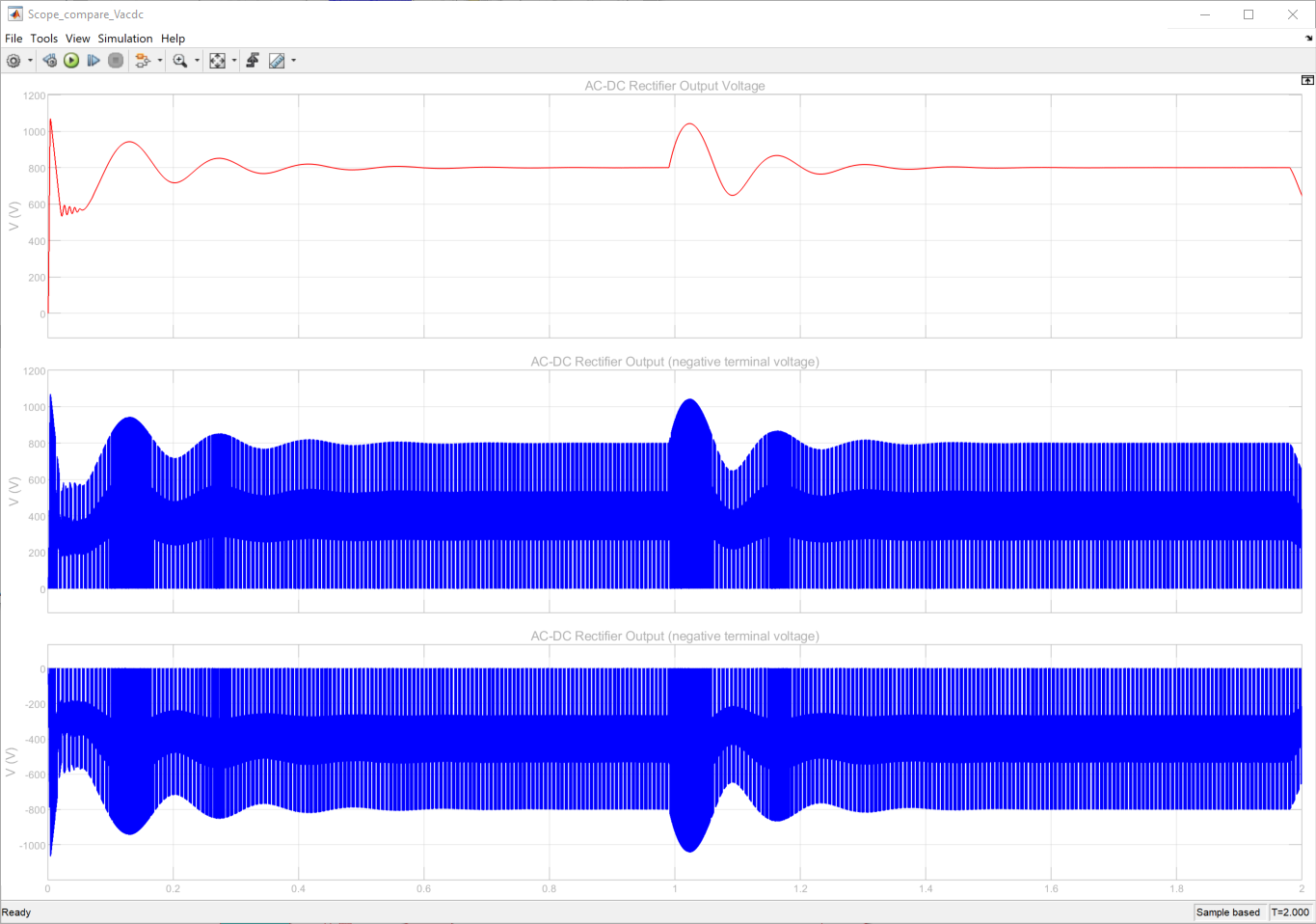

Figure 27. AC-DC Converter Output Voltage ResponseThe figure shows how the AC-DC and LLC DC-DC converter keeps the output voltage around 800 V, as specified for the LLC DC-DC input reference voltage. Every time the load changes, the controller compensates for the changes and adjusts to meet the target reference voltage of 800 V. It shows that the design controls well with variations in the output load with reduced overshot and fast settling time.
