11.7.4.2. Rerunning the Traffic Generator

You can use the debug toolkit to rerun the traffic generator.

To rerun the traffic generator, follow these steps:

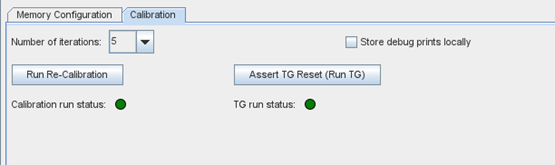

  1. Select the desired number of iterations that you want to rerun the traffic generator from the Number of Iterations pulldown menu.
  2. Click Assert TG Reset (Run TG) to rerun the traffic generator with each iteration.

    The system reports the traffic generator run status for all the iterations. A green dot indicates that the traffic generator passed for all the iterations, while a red dot indicates that the traffic generator failed in at least one iteration.
