5.7.1. Implementation using the PHY Lite for Parallel Interfaces IP

You can configure the PHY Lite for Parallel Interfaces IP to support multiple groups (maximum 48 I/O pins each).

The following lists the possible implementations:

  • Instantiates one PHY Lite for Parallel Interfaces IP with two groups
    • Bidirectional type for DQ and DQS signals
    • Output type for Addr/Cmd signals
Note: Each group in the PHY Lite for Parallel Interfaces IP can have 48 I/Os, and the IP supports up to 18 groups.

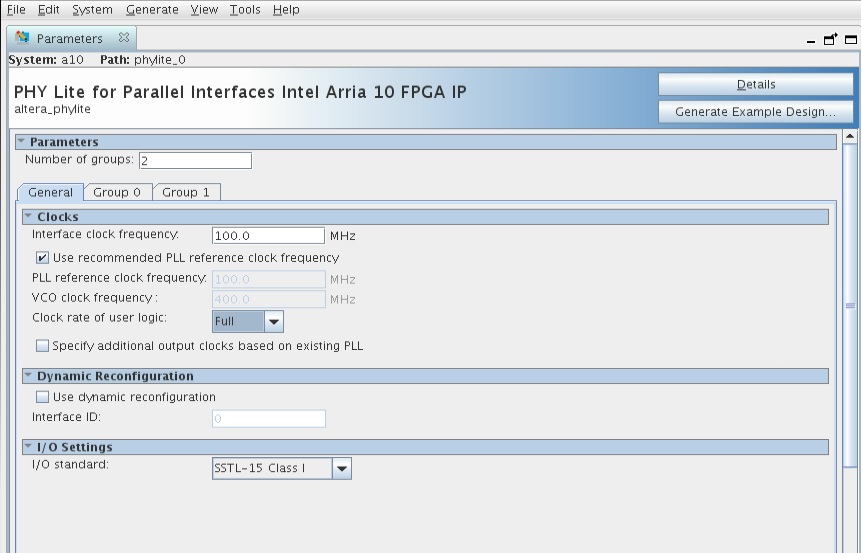

Figure 115.  General Tab Settings


Figure 116.  Group 0 settings (Bidirectional type for DQ and DQS)

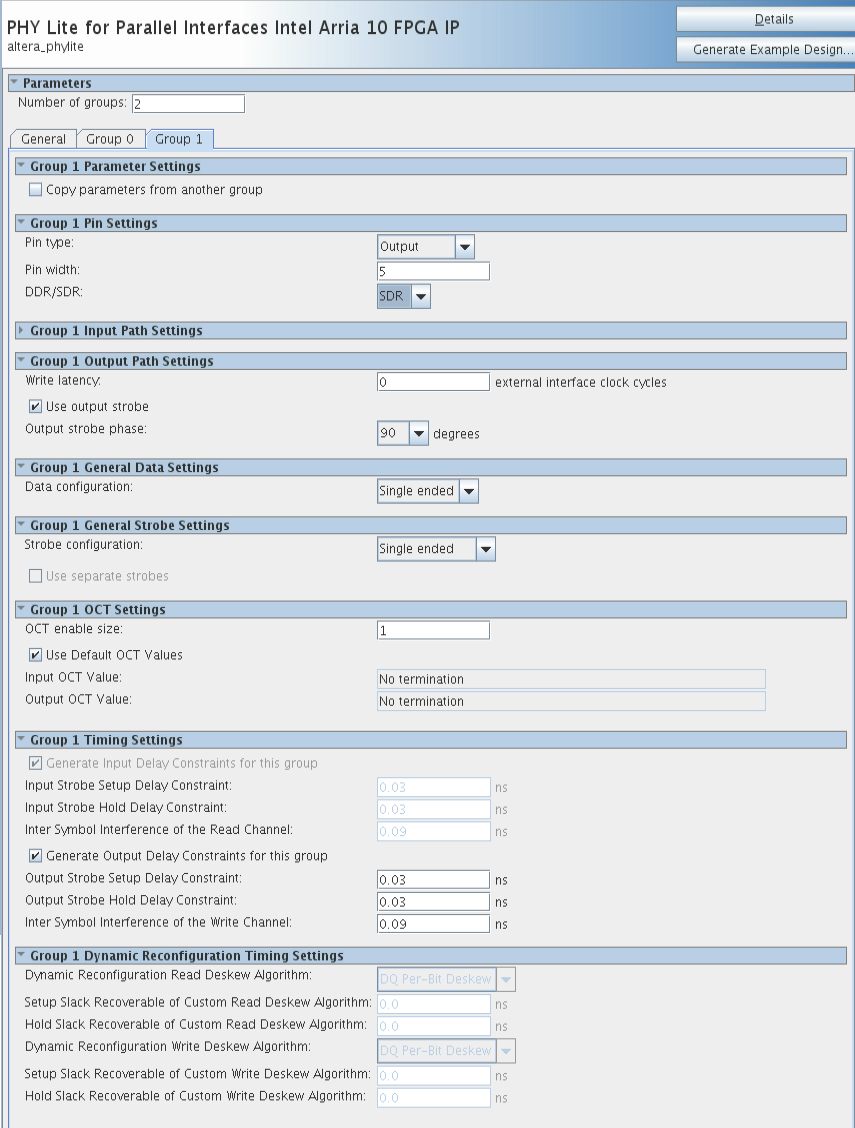

Figure 117.  Group 1 settings (Output type for Addr/Cmd)
