AN 711: Power Reduction Features in Intel® Arria® 10 Devices

SmartVID Power Savings Estimation

The Intel® Arria® 10 device family Early Power Estimator (EPE) includes options for analyzing the possible power savings using SmartVID.

Table 4.  Important Parameter Settings for SmartVID Power Estimation
Parameter Value Description
Temperature Grade

-2V

-3V

These are the only valid options to enable SmartVID.
Power Characteristics Maximum This is the only option that shows the benefit of the static power reduction features for SmartVID.
Note: The SmartVID Power Reduction field shows the power savings resulting from using SmartVID.

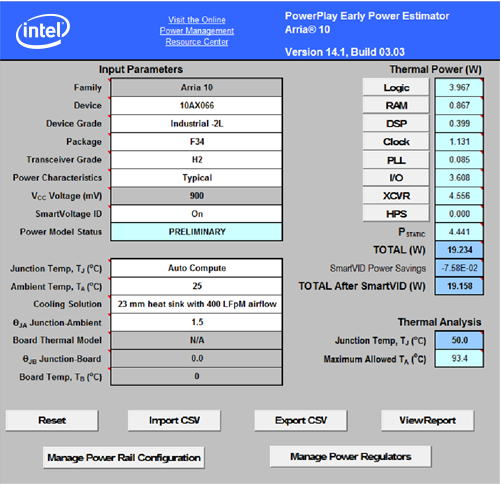

Figure 12. Example Early Power Estimator for Intel® Arria® 10 Devices

Section Content
