1.2. Functional Description for the Single Root I/O Virtualization (SR-IOV) Design Example

The SR-IOV design example performs memory transfers from a host processor to a target device. It supports up to two PFs and 32 VFs per PF. Note that this design example does not support back-to-back transactions from the host processor since the design is intended to showcase single-dword transactions. In addition, the addresses for all the transactions must be dword-aligned.

This design example automatically creates the files necessary to simulate and compile in the Intel® Quartus® Prime software. You can download the compiled design to an Intel Agilex® 7 I-Series FPGA Development Kit.

Table 6.  Configurations Supported by the SR-IOV Design ExampleSupport level keys: S = simulation, C = compilation, T = timing, H = hardware, N/A = configuration not supported.
Port Mode Link Width Link Speed Data Width (Bits) Design Example Support Simulators Support
Endpoint x16 Gen 5 1024 (4 x 256) SCTH VCS* , VCS* MX, Siemens* EDA QuestaSim* , Xcelium* 4
N/A N/A N/A N/A
N/A N/A N/A
N/A N/A N/A N/A
N/A N/A N/A
x8 N/A N/A N/A N/A
N/A N/A N/A N/A
N/A N/A N/A
N/A N/A N/A N/A
N/A N/A N/A
x4 N/A N/A N/A N/A
N/A N/A N/A N/A
N/A N/A N/A
N/A N/A N/A N/A
N/A N/A N/A
Root Port N/A N/A N/A N/A N/A
TLP Bypass N/A N/A N/A N/A N/A
PIPE-D N/A N/A N/A N/A N/A
This design example includes the following components:
  • The generated R-Tile Avalon Streaming (Avalon-ST) IP Endpoint variant (DUT) with the parameters you specified. This component drives the received TLP data to the SR-IOV application.
  • The SR-IOV Application (APPS) component, which performs the necessary translation between the PCI Express TLPs and simple Avalon-ST writes and reads to the on-chip memory. For the SR-IOV APPS component, a memory read TLP generates a Completion with data.
  • A Reset Release IP.

The simulation testbench instantiates the SR-IOV design example and a Root Port BFM to interface with the target Endpoint.

Figure 8. Block Diagram for the Platform Designer SR-IOV Design Example Simulation Testbench

The test program writes to and reads back data from the same location in the on-chip memory across 2 PFs and 32 VFs per PF. It compares the data read to the expected result. The test reports, "Simulation stopped due to successful completion" if no errors occur.

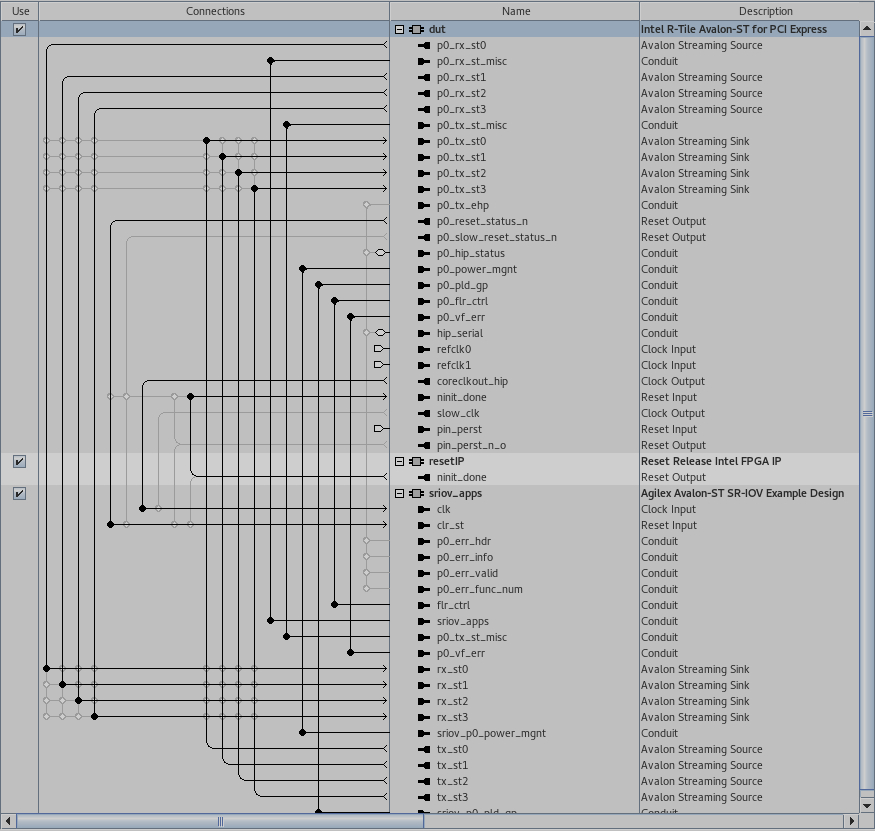

Figure 9.  Platform Designer System Contents for the R-Tile Avalon-ST IP with SR-IOV for PCI Express 1x16 Design Example
4 Xcelium* simulator support is only available in devices with the following OPN numbers: AGIx027R29AxxxxR3, AGIx027R29AxxxxR2, AGIx023R18AxxxxR0, AGIx041R29DxxxxR0, AGIx041R29DxxxxR1. For more details on OPN decoding, refer to the Intel Agilex® 7 FPGAs and SoCs Device Overview.
