4.1.3. Install the Acceleration Stack for Development

The development (dev) installer for Acceleration Stack for Development installs the Intel® Quartus® Prime Pro Edition software version 19.2 on your server for FPGA development. The Intel® Quartus® Prime Pro Edition software version 19.2 does not run on the operating system RHEL 8.2.

Typically, FPGA development is performed on a machine dedicated for Intel® Quartus® Prime Pro Edition and FPGA simulation process, while the Intel® FPGA PAC N3000-N/2 is installed in a separate server with the RTE install for application testing and deployment.

The instructions below show installation on a CentOS 7.6 sever. There are tag options in the installer that only allows installation of Intel® Quartus® Prime Pro Edition.

  1. Download, extract, and change permission for the DEV installer:
    $ tar xvzf n3000_ias_1_3_1_pv_dev_centos_installer.tar.gz

    $ cd n3000_ias_1_3_1_pv_dev_centos_installer
  2. Run the script:
    $ sudo ./n3000-1.3.8-4-dev-el7-setup.sh -y --owner <user[:group]>
    The --owner argument allows you to change the ownership of directories to a given user. Running interactively without the -y option is not supported. For example:
    $ sudo ./n3000-1.3.8-4-dev-el7-setup.sh -y --owner john:john
    The installation will take approximately 20 minutes to complete. The above command installs OPAE driver and tools as well as Intel® Quartus® Prime Pro Edition. If you want to only install the Intel® Quartus® Prime Pro Edition and the provided RTL source files, to run FPGA compiles on a separate server, then change the install command to:
    $ sudo ./n3000-1.3.8-3-dev-el7-setup.sh -y -t quartus source --owner <user[: group]>
    Sample output:
    Running setup
Beginning installation
Processing group "OPAE Software"
Analyzing dependencies...
Installing OPAE Software dependencies
Analyzing packages to install...
	Installing OPAE Software packages...
		opae-intel-fpga-driver-2.0.1-10.x86_64.rpm
		opae.admin-1.0.3-2.el7.noarch.rpm
		opae-libs-1.3.7-5.el7.x86_64.rpm
		opae-tools-1.3.7-5.el7.x86_64.rpm
		opae-tools-extra-1.3.7-5.el7.x86_64.rpm
		opae-devel-1.3.7-5.el7.x86_64.rpm
Processing group "OPAE Software Development Dependencies"
Analyzing dependencies...
Installing OPAE Software Development Dependencies dependencies
nothing to install
Processing group "OPAE PACSign"
Analyzing dependencies...
Analyzing packages to install...
	Installing OPAE PACSign packages...
		opae.pac_sign-1.0.4-3.el7.x86_64.rpm
Extracting opae-1.3.7-5.tar.gz
Extracting opae.admin-1.0.3.tar.gz
Extracting opae.pac_sign-1.0.4.tar.gz
Extracting pac_n3000_rtl_v1.5.7.tar.gz
Installing main Quartus package: QuartusProSetup-19.2.0.57-linux.run
	Installing update: quartus-19.2-0.01vc-linux.run
  3. Add the Intel® Quartus® Prime development tool to the path. This is required for AFU compilation:
    $ source /home/<username>/inteldevstack/bin/init_env.sh
    Adding /home/<username>/inteldevstack/intelFPGA_pro/quartus/bin to PATH
Adding /home/<username>/inteldevstack/intelFPGA_pro/nios2eds/bin/gnu/H-x86_64-pc-linux-gnu/bin to PATH
Adding /home/<username>/inteldevstack/bin to PATH
  4. Verify Intel® Quartus® Prime installation by bringing up Intel® Quartus® Prime GUI and verifying the version and IP licenses:
    $ quartus

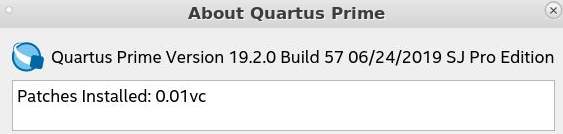

    1. Click Help > About Quartus Prime to verify Intel® Quartus® Prime version:
      Figure 6.  Intel® Quartus® Prime Version
      If patch .01vc is not installed, then verify the execution of init_env.sh in the above step.

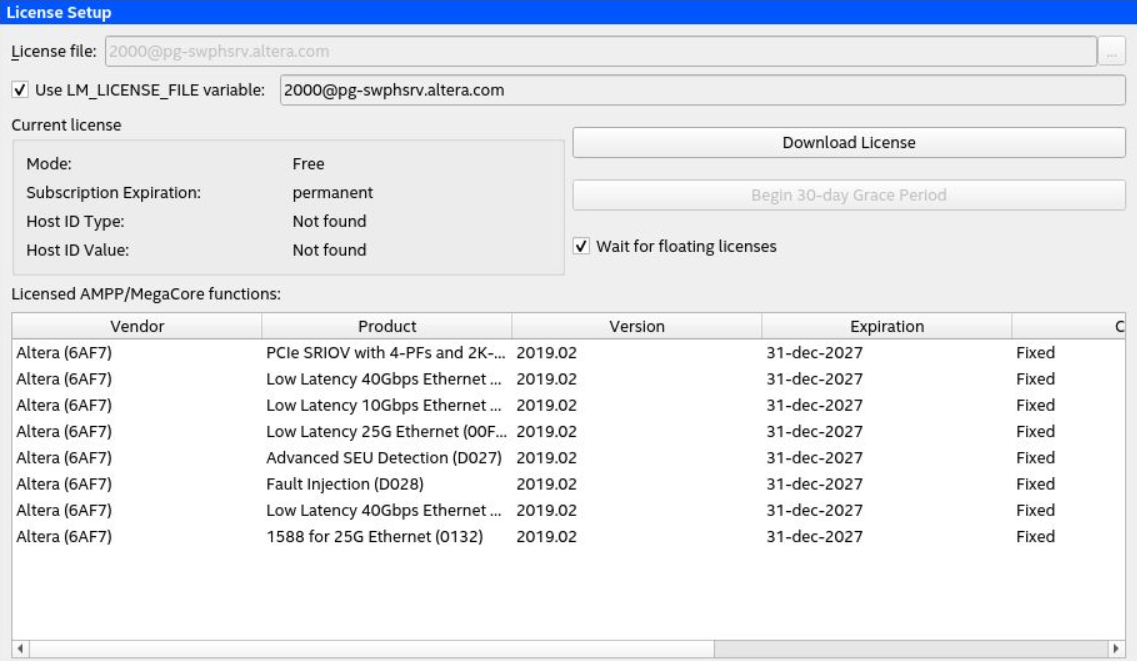

    2. Click Tools > License Setup to verify IP licenses.
      Figure 7. IP Licenses
