3.9.1. SYSREF Pulse Generator

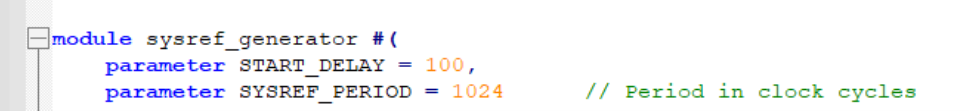

This is a simple periodic pulse generator based on the TX/RX user clock (TX and RX user clocks should come from the same source). SYSREF generation would start after a START_DELAY value (in the user clock cycle) with the pulse generation at the rising edge of the user clock. SYSREF_PERIOD must be more than the F-Tile Serial Lite IV Intel® FPGA IP latency and the delay variation across lanes within a link, it should be selected to be at least 1024 sl4 tx_core_clk. The SYSREF_PERIOD parameter value is recommended to be set ≥1024. The START_DELAY and SYSREF_PERIOD user-programmable parameters are available in the design module.
![](/content/dam/docs/us/en/683287/24-1-9-3-0/plq1710248442430.png)
Signal Name | Direction | Type | Description |
---|---|---|---|
clk | Input | Wire | Input clock from user clock source. |
rst | Input | Wire | Active high asynchronous reset to reset the pulse generator. |
sysref | Output | Reg | Periodic pulse signal for the TX DL wrapper, RX DL wrapper, and F-Tile Serial Lite IV Intel® FPGA IP core. |
