5.10.5. Daughtercards

Intel and its partners offer a variety of application-specific daughtercards. You can use these daughtercards to expand the functionality of the Intel® Arria® 10 SoC development board. Reference designs and application-specific software accompany many of the daughtercards, further facilitating the design process. All daughtercards are available for purchase on Intel.com.

Table 53.   Intel® Arria® 10 SoC Development Board Daughtercards
Daughtercard Daughtercard Image Memory Component Part Number
Boot Flash Daughtercards

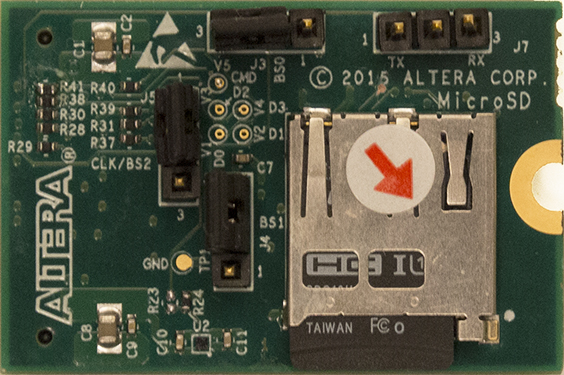

Micro SD Boot Flash Card
Kingston

MBLY10G2/4GB

 QSHDC-MSD-A
QSPI Boot Flash Card
Micron

MT25QU01GBBA8E12-0SIT

 QSHDC-QSPI-A

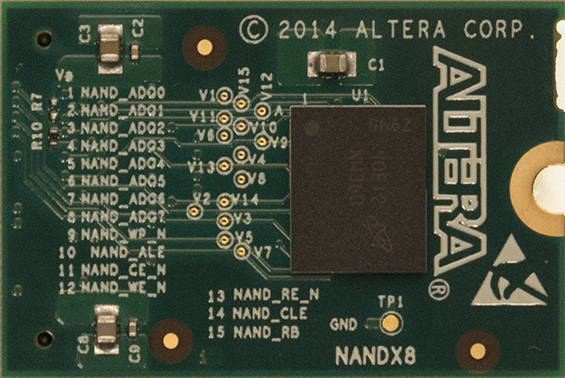

NAND Boot Flash Card
Micron

MT29F1G08ABBEAH4

 QSHDC-NAND-A
HILO memory Daughtercards

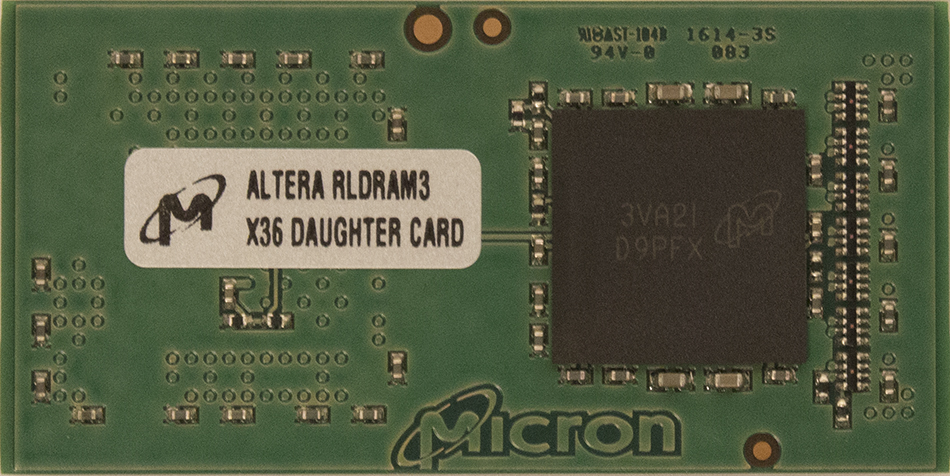

RLDRAM3
Micron

MT44K16M36RB-093E

 HLDC-RLDRAM3-A

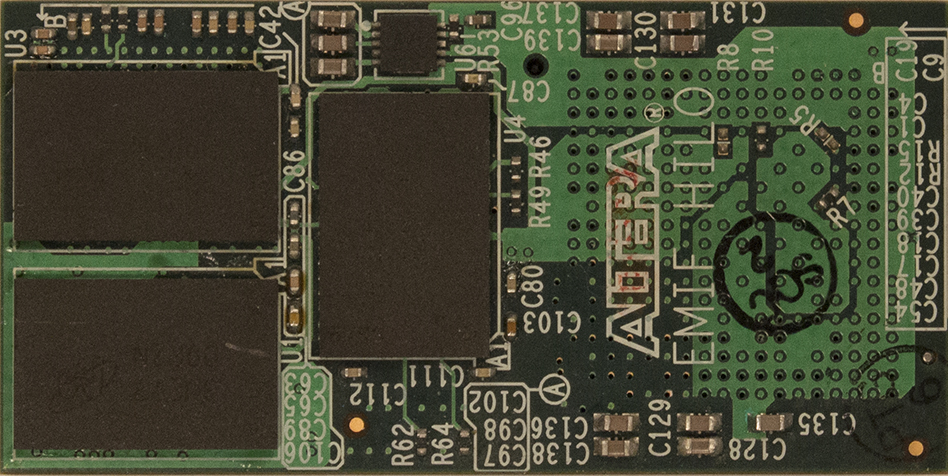

DDR3
Micron

MT41K512M16TNA-107:E

 HLDC-DDR3-A
DDR4
Micron

EDY4016AABG-DR-F

 HLDC-DDR4-A

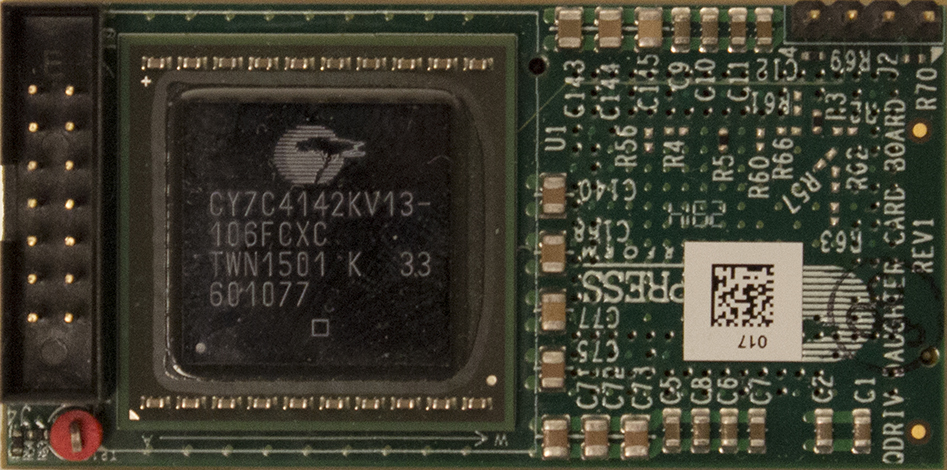

QDRIV
Cypress

CY7C4142KV13-106FCXC

 HLDC-QDRIV-A
