4. Board Test System

This kit includes an application called the Board Test System (BTS). The BTS is an easy-to-use interface to alter functional settings of the FPGA portion of the SoC. You can use the BTS to test board components, modify functional parameters, observe performance, and measure power usage.

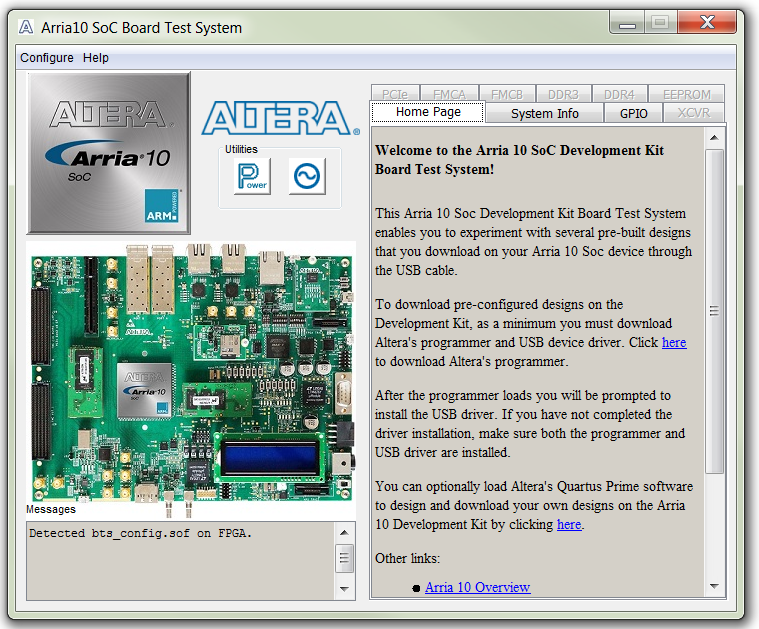

Figure 5. Board Test System GUI

You can use the BTS to test board components, modify functional parameters, observe performance, and measure power usage. While using the BTS, you reconfigure the FPGA several times with test designs specific to the functionality you are testing.

Several designs are provided to test the major board features. Each design provides data for one or more tabs in the application. The Configure menu identifies the appropriate design to download to the FPGA for each tab.

After successful FPGA configuration, the appropriate tab appears that allows you to exercise the related board features. Highlights appear in the board picture around the corresponding components.

The BTS communicates over the JTAG bus to a test design running in the FPGA. The Board Test System and Power Monitor share the JTAG bus with other applications like the Nios® II debugger and the Signal Tap Embedded Logic Analyzer.

Note: Because the BTS is designed based on the Intel® Quartus® Prime Programmer and system console, be sure to close the other applications before you use the BTS application.

Section Content
Preparing the Board
Running the Board Test System
Version Selector
Using the Board Test System
