11.7.3. Launching the EMIF Debug Toolkit

Before launching the EMIF Debug Toolkit, ensure that you have configured your device with a programming file that has the EMIF Debug Toolkit enabled. Refer to Configuring a Design to Use the Debug Toolkit.

To launch the EMIF Debug Toolkit, follow these steps:

  1. In the Intel Quartus Prime software, open the System Console by clicking Tools > System Debugging Tools > System Console.

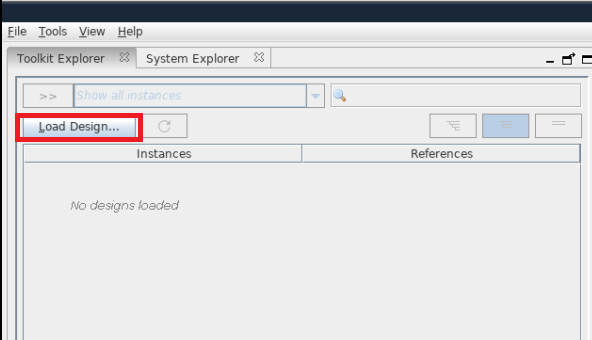

  2. In the System Console, load the SRAM Object File (.sof) with which you programmed the board in Prerequisites for Using the EMIF Debug Toolkit.

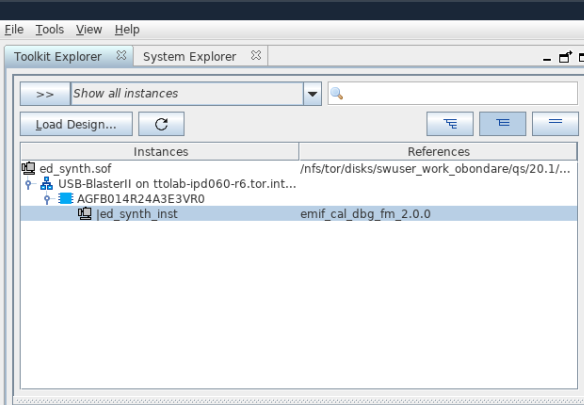

  3. Select the correct instance to debug:

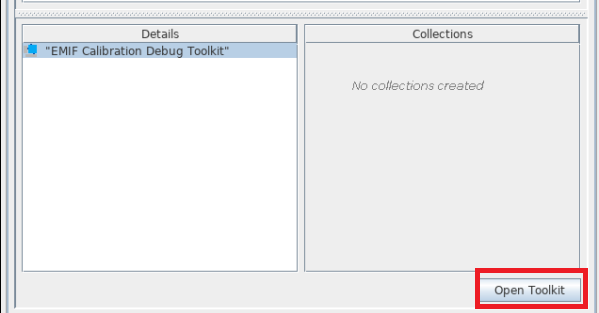

  4. Select the EMIF Calibration Debug Toolkit, which appears in the Details section, and click Open Toolkit to open the main view of the toolkit.

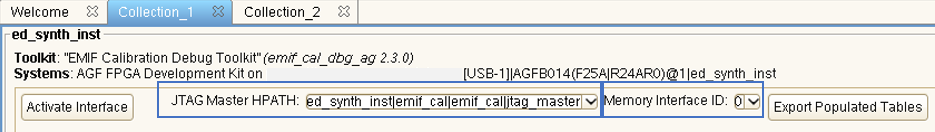

  5. If there are multiple EMIF instances in the programmed design, select the column (path to JTAG master) and ID of the EMIF instance for which to activate the toolkit.

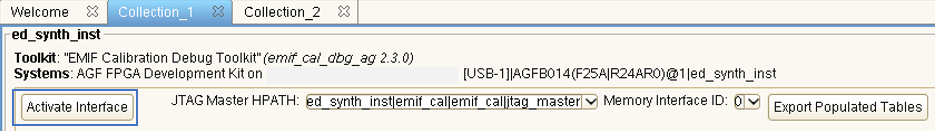

  6. Click Activate Interface to allow the toolkit to read the parameters and status for the selected interface, and to perform analysis tasks.

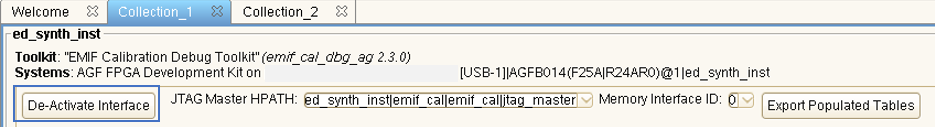

  7. You must debug one interface at a time; therefore, to connect to another interface in the design, you must first deactivate the current interface.
