11.7.4.8. ISSPs Tab

The ISSP tab lets you read probe data and set source values for the In-System Sources and Probes in the design.

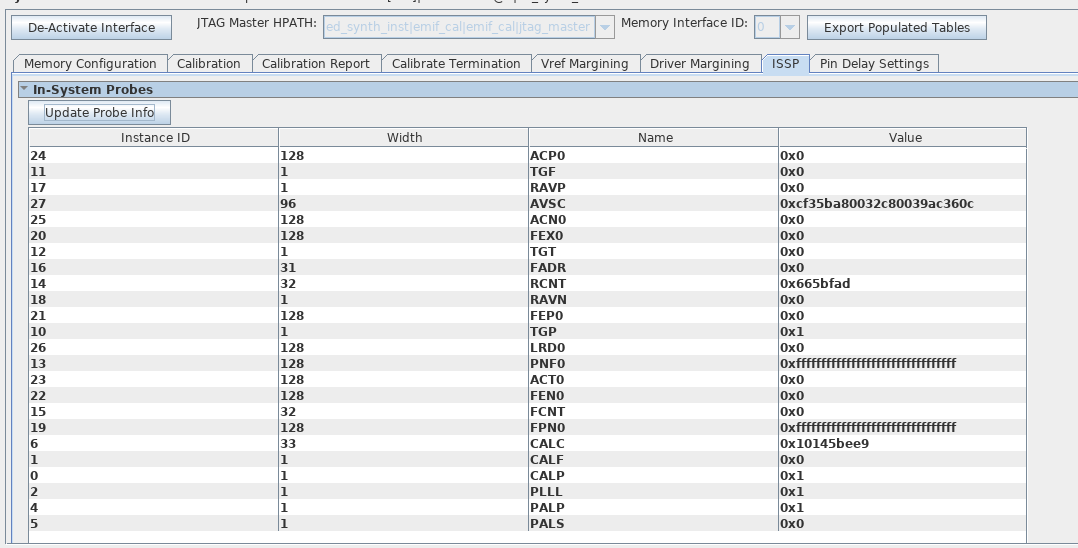

To reread the probe data from the ISSPs in the design, expand the In-System Probes section and click the Update Probe Info button.

Figure 190. Displayed Probe Data

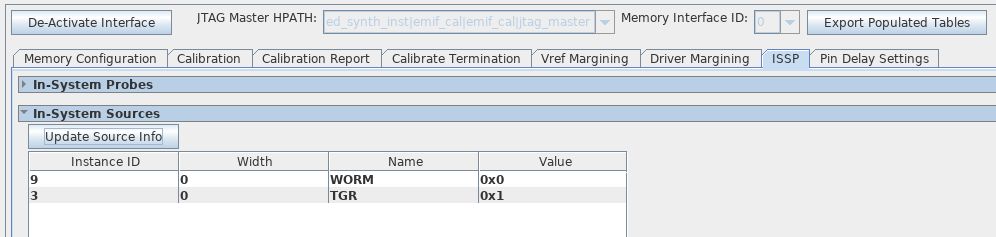

To reread the source data from the ISSPs in the design, expand the In-System Sources section and click the Update Source Info button.

Figure 191. Displayed Source Data

To overwrite the source data, select the Instance Name and change the Writedata value. The new source value is written when you click Write Source Info.

Descriptions of ISSPs in the EMIF Design Example

Instance name Description
PLLL PLL Lock signal. A value of 1 means that the PLL is locked, a value of 0 means that the PLL cannot lock to the reference clock.
RCNT Total read data count.
FCNT Total fail count (data mismatch count).
FADR First address where a data mismatch is reported.
RAVP Read data valid from the data before the first failing address.
RAVN Read data valid from the data after the first failing address.
PNF# Persistent Pass Not Fail Flag. A 1 indicates pass, 0 indicates fail.
FPN# PNF flag for the first data mismatch.
FEX# The expected read data for the first failing read.
FEP# The expected read data before the first failing read.
FEN# The expected read data after the first failing read.
ACT# The actual read data for the first failing read.
ACP# The actual read data before the first failing read.
ACN# The actual read data after the first failing read.
LRD# The repeated read result. When there is an error, the driver reads again from the first failing address. This is the PNF flag for the repeated read.
AVSC Avalon Stall Count - a concatenation of the following three 32-bit signals (MSB to LSB):
  • Count of read/write requests on the ctrl_amm interface.
  • Count of only read requests on the ctrl_amm interface.
  • Number of clocks counted since receiving the first read/write request.
PALP Clock phase alignment lock status.
PALS Clock phase alignment lock (secondary).
Note: This is not used in Agilex FPGAs.
CALC Calibration counter. Highest bit is a done signal — a value of 1 means that calibration has completed, and a value of 0 means that calibration is still in progress. The other 32 bits are a clock counter which tracks the number of clocks passed during calibration.
TGP Traffic Generator Pass Flag. Pass=1.
TGF Traffic Generator Fail Flag. Fail=1.
TGT Traffic Generator Timeout. Timeout=1.
TGR Traffic Generator Reset. Active High. Toggle TGR to rerun the traffic generator.
RSTN Global Reset for the design example. Active Low. Toggle RSTN to reset and recalibrate the interface.
WORM Set to 1 to enable WORM mode. In WORM mode, if a data mismatch is encountered, the system stops as much of the traffic as possible and issues a read to the same address. In this mode, the persistent PNF is no longer meaningful as execution stops at the first data mismatch. By default, WORM mode is turned off.
PRTY Indicates DDR4 memory parity status. A value of 0 indicates no error, and a value of 1 indicates an error. The value is not updated if the design is not DDR4, or if the AC Parity Latency parameter is disabled in the parameter editor.
Level Two Title
