2.3.5. Installing Linaro* Bare Metal Toolchain
This section shows how to install the Linaro* Bare Metal toolchain for Cortex-A9, useful for compiling Bare Metal programs for Arria® V SoC, Cyclone® V SoC, and Intel® Arria® 10 SoC.

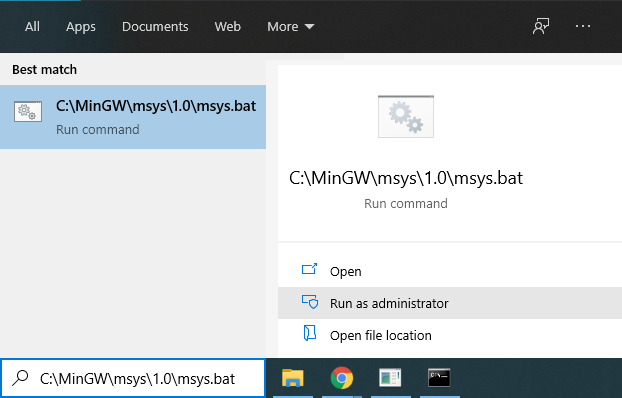

- Run C:\MinGW\msys\1.0\msys.bat as an administrator.
Figure 13. Run Command
- In the Msys console, go to the linaro folder:
- For Intel® Quartus® Prime Pro Edition software version 20.1:
cd c:/intelFPGA_pro/20.1/embedded/host_tools/linaro
- For Intel® Quartus® Prime Standard Edition software version 20.1:
cd c:/intelFPGA/20.1/embedded/host_tools/linaro
- For Intel® Quartus® Prime Pro Edition software version 20.1:
- Run the installer:
./install_linaro.sh
- The Linaro* toolchain and the newlib library are downloaded and compiled.
- Upon successful completion, the following are installed in the linaro folder:
- gcc–GNU Compiler
- newlib–Newlib library
