Intel FPGA JESD204B IP Core and ADI AD9371 Hardware Checkout Report

Test Results

The following table contains the possible results and their definition.

Table 12.  Results Definition
Result Definition
PASS The Device Under Test (DUT) was observed to exhibit conformant behavior.
PASS with comments The DUT was observed to exhibit conformant behavior. However, an additional explanation of the situation is included, such as due to time limitations only a portion of the testing was performed.
FAIL The DUT was observed to exhibit non-conformant behavior.
Warning The DUT was observed to exhibit behavior that is not recommended.
Refer to comments From the observations, a valid pass or fail could not be determined. An additional explanation of the situation is included.

The following table shows the results for test cases CGS.1, CGS.2, ILA.1, ILA.2, ILA.3, TL.1, and SCR.1 with different values of L, M, F, K, subclass, data rate, sampling clock, link clock, and SYSREF frequencies.

Table 13.  Results Definition for DAC
Test L M F SCR K Lane rate (Gbps) DAC IQ rate (MSPS) Link Clock (MHz) Result
1 1 2 4 0 32 6.144 153.6 153.6 PASS with comments
2 1 2 4 1 32 6.144 153.6 153.6 PASS with comments
3 2 2 2 0 32 6.144 307.2 153.6 PASS with comments
4 2 2 2 1 32 6.144 307.2 153.6 PASS with comments
5 4 2 1 0 32 3.072 307.2 76.8 PASS with comments
6 4 2 1 1 32 3.072 307.2 76.8 PASS with comments
7 1 4 8 0 32 6.144 76.8 153.6 PASS with comments
8 1 4 8 1 32 6.144 76.8 153.6 PASS with comments
9 2 4 4 0 32 6.144 153.6 153.6 PASS with comments
10 2 4 4 1 32 6.144 153.6 153.6 PASS with comments
11 4 4 2 0 32 6.144 307.2 153.6 PASS with comments
12 4 4 2 1 32 6.144 307.2 153.6 PASS with comments

Table 14.  Results Definition for Main ADCMode with LMF=421 cannot be implemented in JESD204B IP core in Intel® Arria® 10 devices. The lane rate supported by Arria 10 devices are 2 Gbps-15 Gbps. But because of limited ADC IQ rate, the mode LMF=421 can only reach 1.536 Gbps in the converter side.
Test L M F SCR K Lane rate (Gbps) ADC IQ rate (MSPS) Link Clock (MHz) Result
1 1 2 4 0 32 6.144 153.6 153.6 Pass
2 1 2 4 1 32 6.144 153.6 153.6 Pass
3 2 2 2 0 32 3.072 153.6 76.8 Pass
4 2 2 2 1 32 3.072 153.6 76.8 Pass
5 1 4 8 0 32 6.144 76.8 153.6 Pass
6 1 4 8 1 32 6.144 76.8 153.6 Pass
7 2 4 4 0 32 6.144 153.6 153.6 Pass
8 2 4 4 1 32 6.144 153.6 153.6 Pass
9 4 4 2 0 32 3.072 153.6 7.68 Pass
10 4 4 2 1 32 3.072 153.6 7.68 Pass

The following table shows the results for test cases DL.1 and DL.2 with different values of L, M, F, K, subclass, data rate, sampling clock, link clock and SYSREF frequencies

Table 15.  Results Definition for Deterministic Latency Test
Test L M F Sub- class SCR K Transmitter Lane rate (Gbps) Receiver Lane rate (Gbps) SYSREF pulse frequency 15 (MHz) Total Latency Result
1 1 2 4 1 1 32 6.144 6.144 0.48 Pass

(1.146 us)
2 2 2 2 1 1 32 6.144 3.072 0.48 Pass

(1.328-1.341 us)
3 4 2 1 1 1 32 3.072 -16 0.48 Pass 16

(0.651-0.657 us)
4 1 4 8 1 1 32 6.144 6.144 0.48 Pass

(2.331 us)
5 2 4 4 1 1 32 6.144 6.144 0.48 Pass

(1.133-1.146 us)
6 4 4 2 1 1 32 6.144 3.072 0.48 Pass

(1.328-1.354 us)

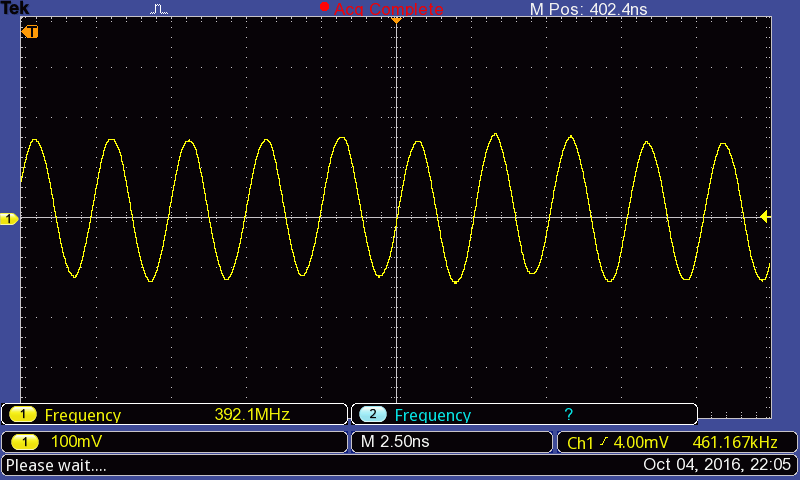

Figure 10. Oscilloscope plot observed at DAC output.The LO frequency is set to 400MHz in AD9371 RF transmitter in this example and a monotone of 7.68MHz is being transmitted from FPGA.

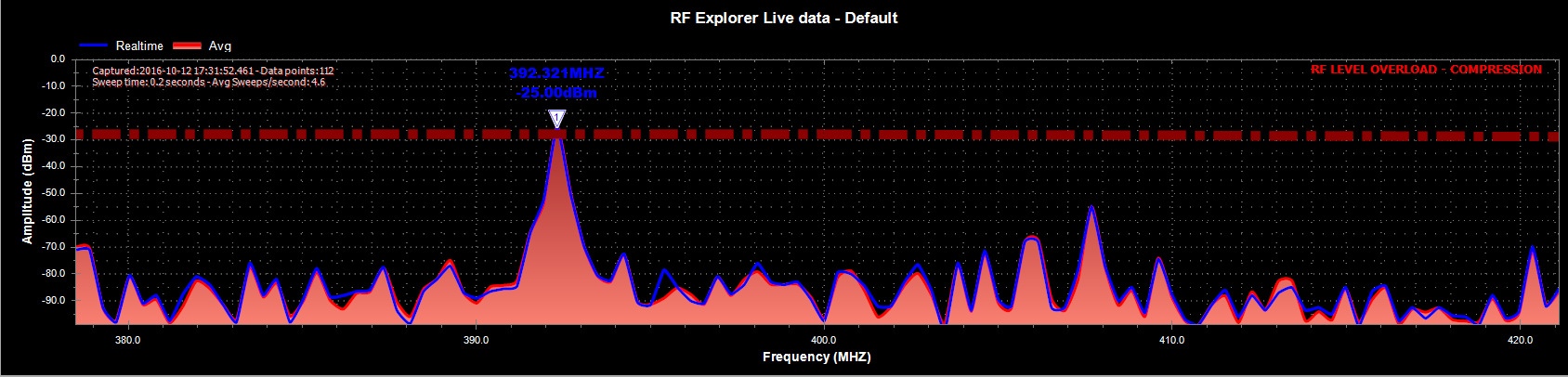

Figure 11. Spectrum Analyzer plot observed at DAC output.The LO frequency is set to 400MHz in AD9371 RF transmitter in this example and a monotone of 7.68MHz is being transmitted from FPGA. The peak is observed at 392.32 MHz (i.e., 400-7.68 MHz).
Figure 12. Transmitted sine wave at input of transmitter transport layer and Received sine wave at output of receiver transport layer observed in Signal Tap II Logic Analyzer for mode LMF=148.

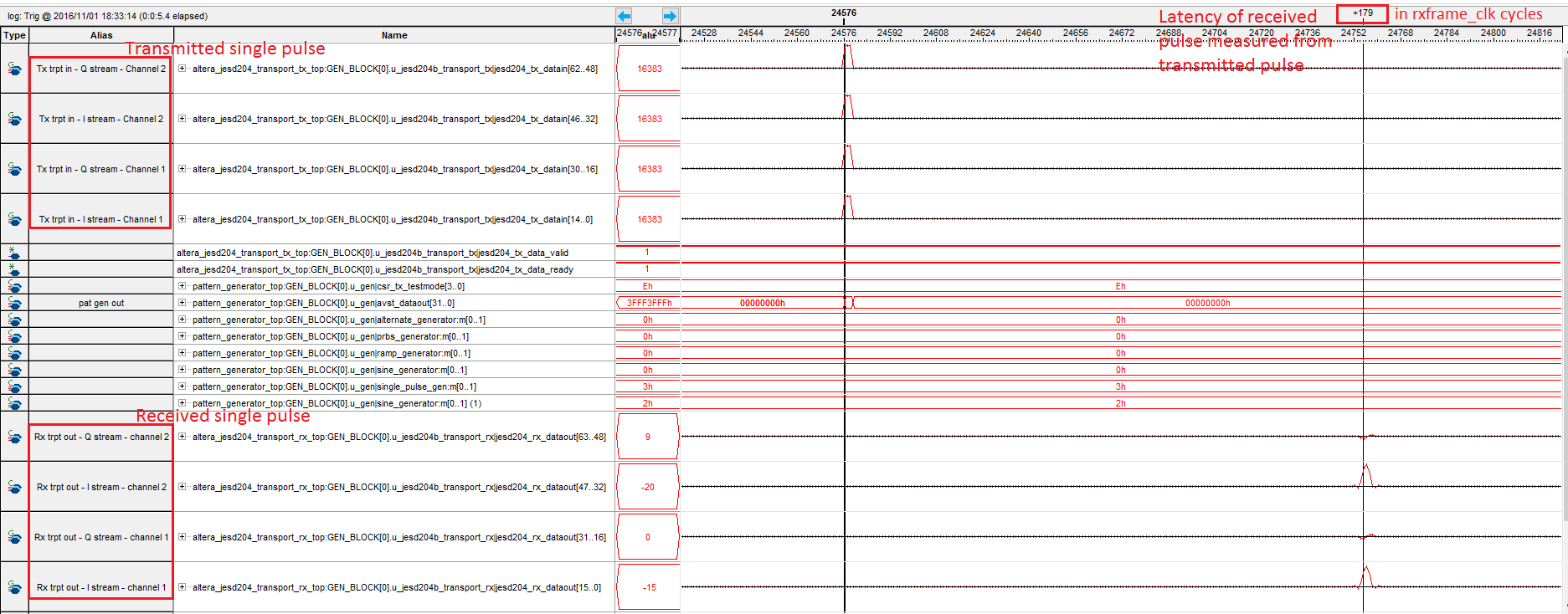

Figure 13. Latency measured between rising edge of transmitted single pulse and rising edge of received single pulse for mode LMF=148. Latency is observed to be 179 rxframe_clk cycles or 2.331 us.

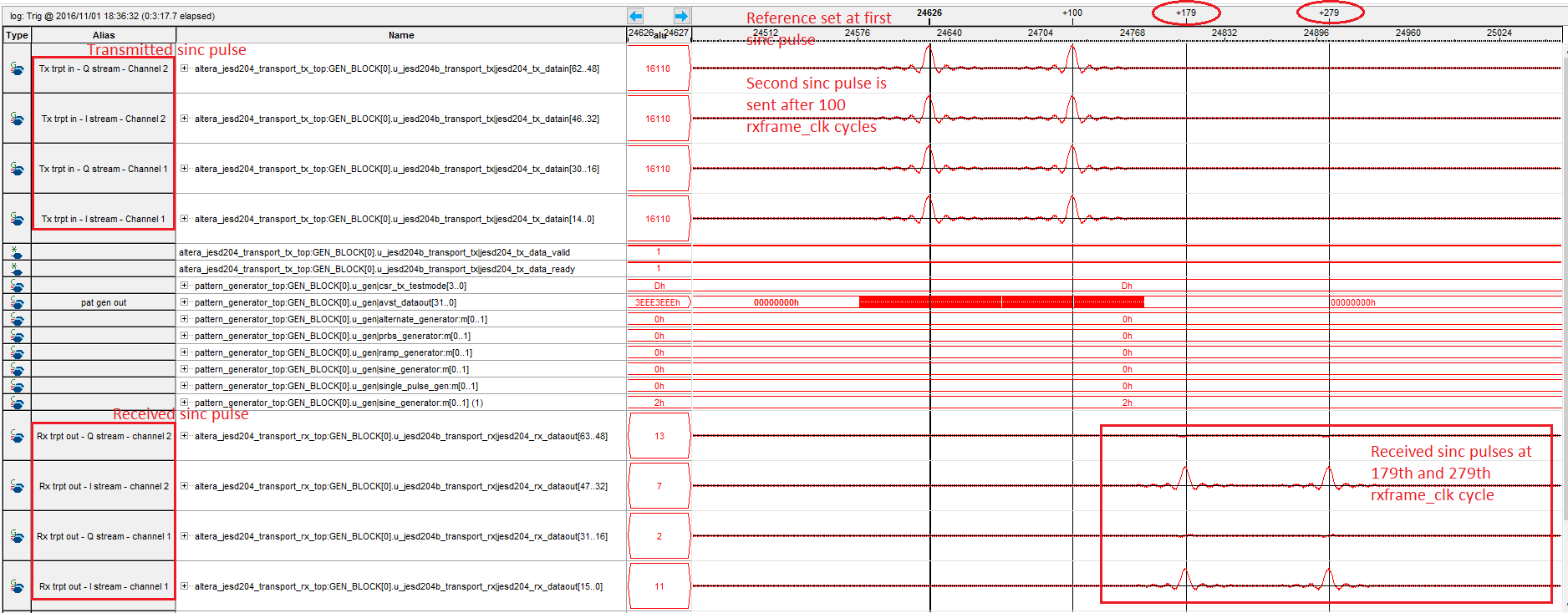

Figure 14. Latency measured between centre of transmitted sinc pattern and centre of received sinc pattern for mode LMF=148.Two pulses are sent with 100 rxframe_clk cycles delay. Same delay of 100 clock cycles is observed in received signal.
Related Information
15 The sysref frequency is taken as integer multiple of LMFC period. The value of 0.48MHz is derived as a common integer multiple for all JESD204B modes.
16 The link latency is measured as the loopback delay of transmitter and receiver datapaths. For more information on how DL validation is performed on mode with LMF=421, refer to the section on deterministic latency.
