2.4.1.4. Clock Enables

Use clock enables instead of gated clocks:

assign clk_gate = clk1 & gateA & gateB;
always @ (posedge clk_gate) begin
   sr[N-1:1] <= sr[N-2:0];
   sr[0]<=din1;
end
assign enable = gateA & gateB;
always @(posedge clk2) begin
   if (enable) begin
      sr[N-1:1] <= sr[N-2:0];
      sr[0]<=din2;
   end
end

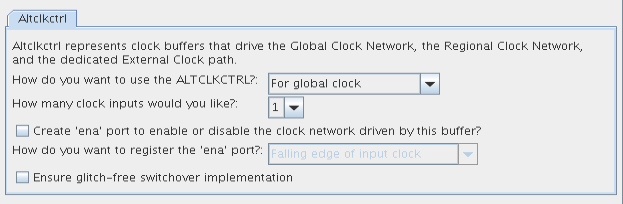

Reduce LAB-wide clock power consumption without disabling the entire clock tree, use the LAB-wide clock enable to gate the LAB-wide clock.

always @(posedge clk)
begin
   if (ena)
      temp <= dataa;
   else
      temp <= temp;
   end
end
