2.3.1. I/O Assignments with the Quartus® Prime Assignment Editor

You can assign all instance-specific settings and constraints through the Quartus® Prime Assignment Editor. You can filter assignments by node name or category.

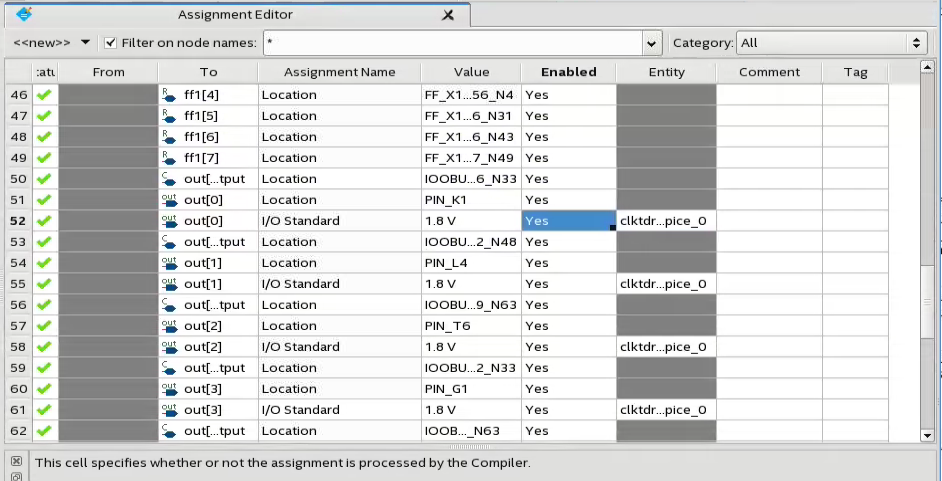

Figure 4.  Quartus® Prime Assignment Editor This figure shows an example of the user interface and does not represent actual components, features, or settings supported by M-Series FPGAs.

Section Content
Assigning Pin I/O Standards in the Quartus Prime Assignment Editor
Assigning Programmable IOE Features in the Quartus Prime Assignment Editor
GPIO-B Programmable IOE Features Assignment Names and Settings

Level Two Title
