4.5.1.2.2. Software Design Flow

This section provides the software design flow to generate and build the Nios® V processor software project. To ensure a streamline build flow, you are encouraged to create similar directory tree in your design project. The following software design flow is based on this directory tree.

To create the software project directory tree, follow these steps:
  1. In your design project folder, create a folder named software.
  2. In the software folder, create two folders named app and bsp.
Figure 35. Software Project Directory Tree

Creating the BSP Project Application

Note: For Intel® Quartus® Prime Standard Edition software, refer to the topic Intel® Quartus® Prime Software Support to invoke the BSP Editor GUI.

You must edit the BSP editor settings according to the selected Nios® V processor boot options.

To launch the BSP Editor, perform the following steps:

  1. In the Platform Designer window, select File > New BSP. The Create New BSP windows appears.
  2. For BSP setting file, navigate to the software/bsp folder and name the BSP as settings.bsp.

    BSP path: <project directory>/software/bsp/settings.bsp

  3. For System file (qsys or sopcinfo), select the Nios V/m processor Platform Designer system (.qsys) file.
  4. For Quartus project, select the Quartus Project File.
  5. For Revision, select the correct revision.
  6. For CPU name, select the Nios V/m processor.
  7. Select the Operating system as Altera HAL.
  8. Click Create to create the BSP file.

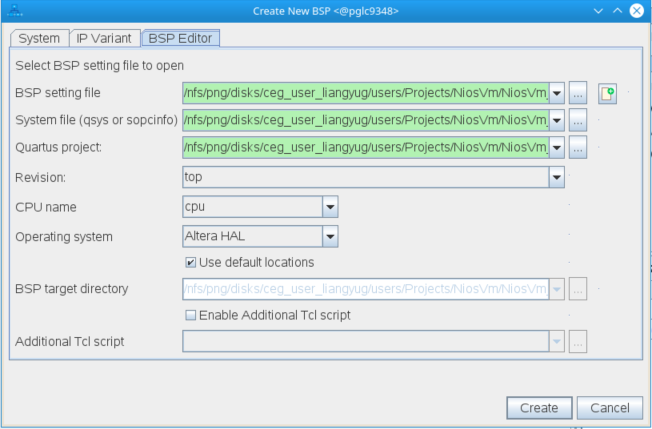

Figure 36. Create New BSP window

Configuring BSP Editor and Generating the BSP Project

  1. Go to Main > Settings > Advanced > hal.linker.
  2. Leave all settings unchecked.
    Figure 37. hal.linker Settings
  3. Click the BSP Linker Script tab in the BSP Editor.
  4. Set all the Linker Section Name list to the OCRAM or external RAM.
    Figure 38. Linker Region Settings
  5. Click Generate BSP. Make sure the BSP generation is successful.
  6. Close the BSP Editor.

Generating the Application Project File

  1. Navigate to the software/app folder and create your Nios® V application source code.
  2. Launch the Nios V Command Shell.
  3. Execute the command below to generate the application CMakeLists.txt.
niosv-app --app-dir=software/app --bsp-dir=software/bsp \
--srcs=software/app/<Nios V application source code>

Building the Application Project

You can choose to build the application project using the RiscFree* IDE for Intel FPGAs, Eclipse Embedded CDT or through the command line interface (CLI).

With the CLI, you can build the user project using the following commands:

cmake -G "Unix Makefiles" -DCMAKE_BUILD_TYPE=Debug \
-B software/app/debug -S software/app
make -C software/app/debug

The application (.elf) file is created in software/app/debug folder.

Generating HEX File

You must generate a .hex file from your application .elf file, so you can create a .jic file suitable for programming flash devices.

  1. Launch the Nios V Command Shell.
  2. For Nios® V processor application copied from QSPI flash using boot copier, use the following command line to generate the .hex file for your application.
  3. Refer to the table GSFI Bootloader for Nios V Processor Core in the topic GSFI Bootloader for the suitable GSFI bootloader that you can use in the elf2flash command.
elf2flash
  --boot <Intel Quartus Prime installation directory>/
      niosv/components/bootloader/<GSFI bootloader>
  --input software/app/debug/<Nios V application>.elf \
  --output flash.srec --reset <reset offset + base address of GSFI AVL MEM> \
  --base <base address of GSFI AVL MEM> \
  --end <end address of GSFI AVL MEM>
riscv32-unknown-elf-objcopy --input-target srec --output-target ihex \
  flash.srec <Nios V application>.hex
