1.2.1. CPRI Multirate Design Example Parameters

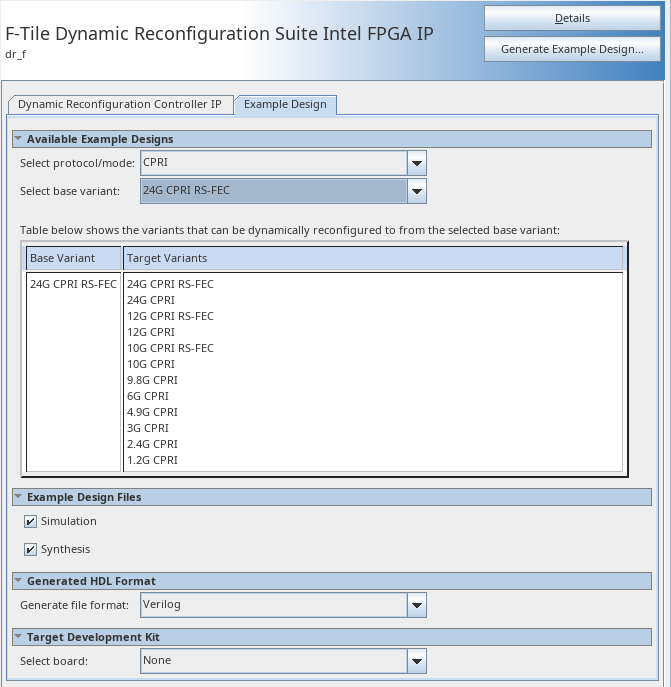

Figure 3. CPRI Multirate Example Design Tab
Table 2.  CPRI Multirate Design Example Parameters
Parameters Value Description
Select Protocol/mode CPRI Select the IP protocol for dynamic reconfiguration.
Select Base Variant 24G CPRI RS-FEC Select the configuration of base variant for dynamic reconfiguration.
Example Design Files Simulation

Synthesis

 Simulation option generates the testbench and compilation-only project. Synthesis option generates the hardware design example.
Generated File Format Verilog

VHDL

 Select the HDL files format. If you select VHDL, you must simulate the testbench with a mixed-language simulator.
Target Development Kit None

Intel® Agilex™ 7 I-Series Transceiver-SoC Development Kit

Specify the target device for the hardware example design. This option is only available if you select the Synthesis option.
