2.9. Step 9: Performing Data Acquisition

After loading the appropriate .rbf onto the board, you can start data acquisition on the Signal Tap logic analyzer.

To perform data acquisition:

  1. Make sure that the Signal Tap Logic Analyzer loads the .stp file in the current active revision.
  2. In the top right corner of the Signal Tap window, set up the JTAG connection to the board with the following options:
    Option Description
    Hardware USB-BlasterII
    Device 1SG280L
    Bridge Index 0

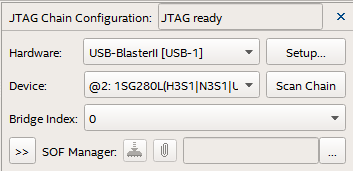

    Figure 20. JTAG Configuration
  3. On the Signal Tap toolbar, click Run Analysis .
    The analysis may take a few minutes.
    When the analysis finishes, the Signal Tap Logic Analyzer loads the waveforms to the window.
The following section displays the resultant waveforms for all PR configurations.
