6.1.4.4. Viewing Routing Resources

With the Chip Planner and the Locate History window, you can view the routing resources that a path or connection uses. You can also select and display the Arrival Data path and the Arrival Clock path.

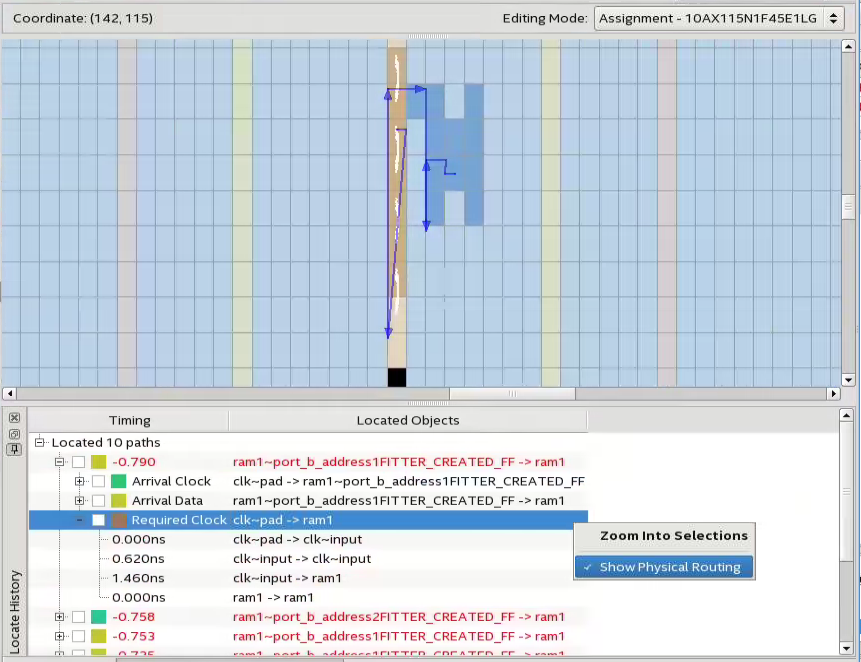

Figure 65. Show Physical Routing

In the Locate History window, right-click a path and select Show Physical Routing to display the physical path. To adjust the display, right-click and select Zoom to Selection.

Figure 66. Highlight Routing

To see the rows and columns where the Fitter routed the path, right-click a path and select Highlight Routing.
