6.3.5.5. Noncontiguous Logic Lock Regions6.3.6.4. Noncontiguous Logic Lock Regions

You can create disjointed regions by using the Logic Lock region manipulation tools. Noncontiguous regions act as a single Logic Lock region for all Logic Lock region attributes.

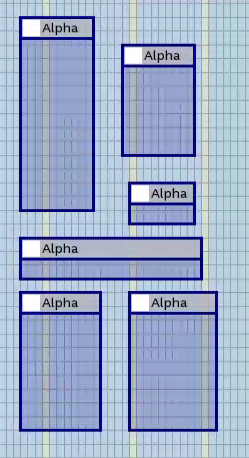

Figure 72. Noncontiguous Logic Lock Region
Related Information
Level Two Title
