6.6.2. Enabling the R-Tile Debug Toolkit

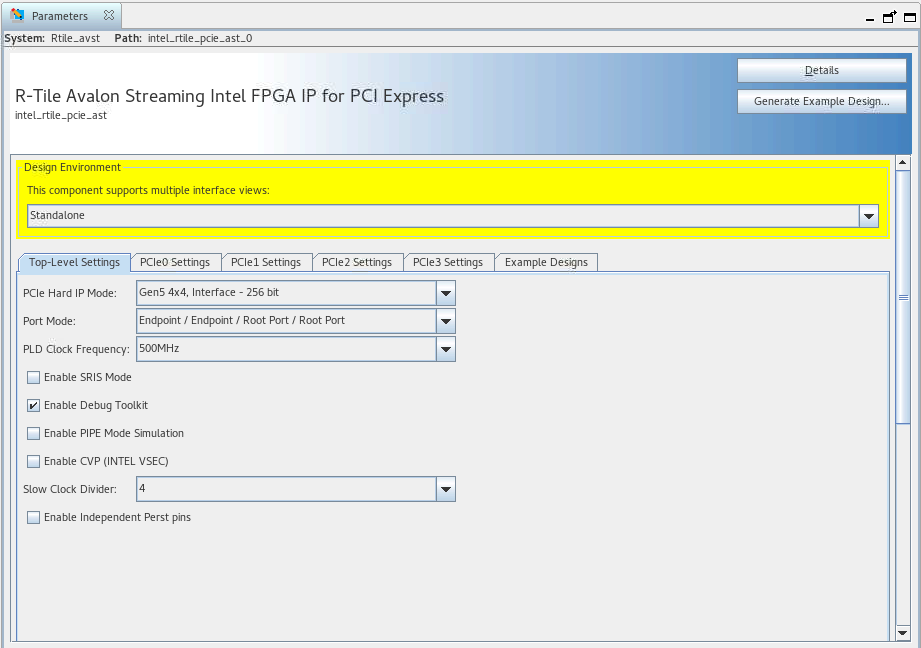

To enable the R-Tile Debug Toolkit in your design, enable the option Enable Debug Toolkit in the Top-Level Settings tab of the R-Tile Avalon Streaming Intel FPGA IP for PCI Express. When the Debug Toolkit is enabled via the Enable Debug Toolkit parameter, the Hard IP Reconfiguration Interface is automatically enabled.

Note: When the Debug Toolkit is enabled via the Enable Debug Toolkit parameter, the PHY Reconfiguration interface is automatically enabled. A 100 MHz clock must be provided on the xcvr_reconfig_clk port for proper functionality of the Debug Toolkit.
