6.6.4.4. Configuration Space

This tab allows you to read the configuration space registers directly, without the need to issue a Configuration Read from the link partner. Depending on the Hard IP Mode selected during the IP configuration (for example Gen5 2x8), you will see a separate tab with the configuration space for each port. Also, please note that:
  • All the information is read-only.
  • The per-lane information under the tab Configuration Space corresponds to the logical lanes.
  • Use the Refresh Configuration Space button to read the Configuration Space registers.

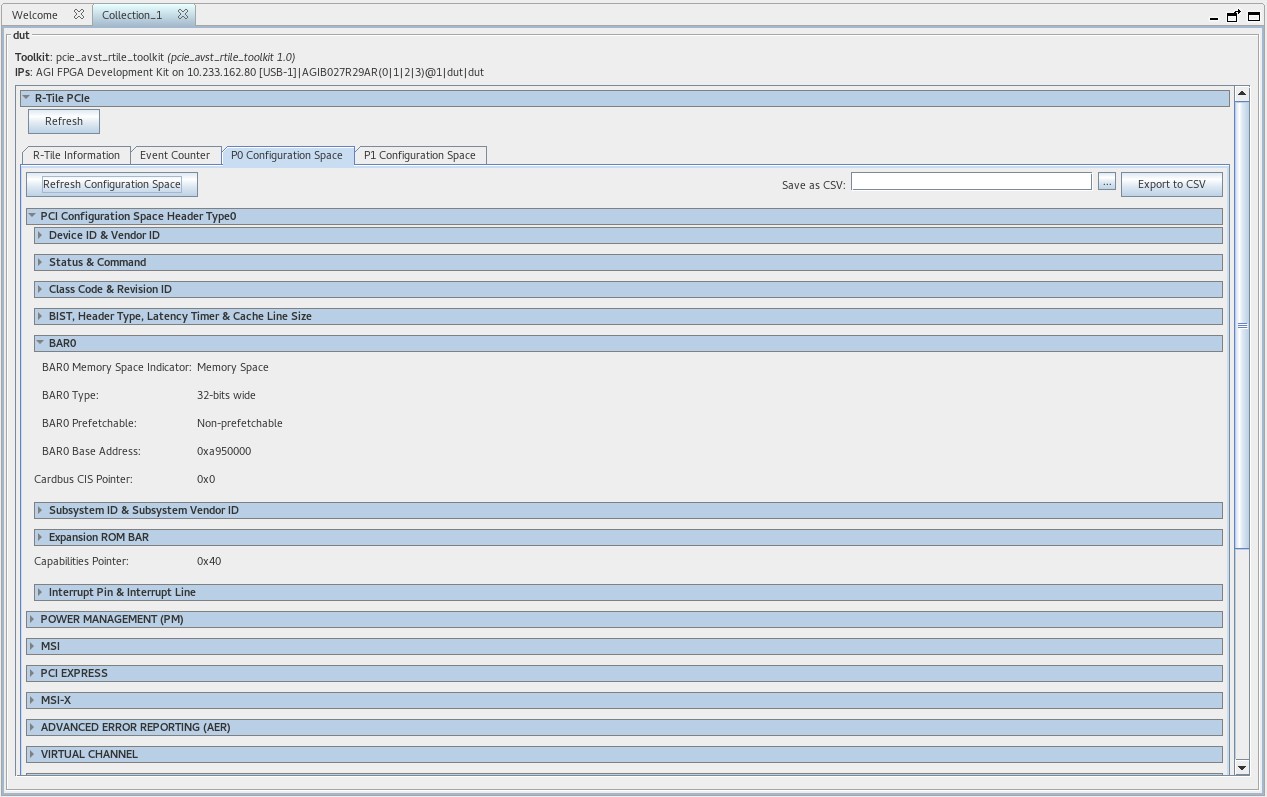

Figure 69. Configuration Space Tab
