2.5.1.11. Report Reset Statistics

The Timing Analyzer's Reports > Design Metrics > Report Reset Statistics... command allows you to report the numbers of synchronous and asynchronous resets in the design. Minimizing registers that require reset helps timing closure by reducing circuit dependencies and by reducing high fanout nets. This report helps you identify potential places to remove resets.

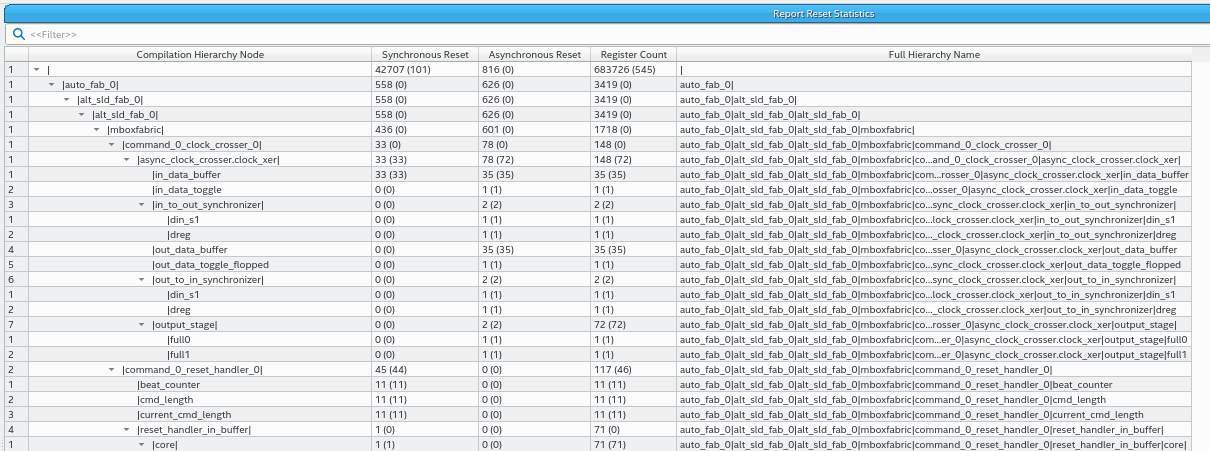

Figure 65. Report Reset StatisticsShows the number of sync and async resets and total number of registers hierarchically
