6.2.3.18. Receiver Detection

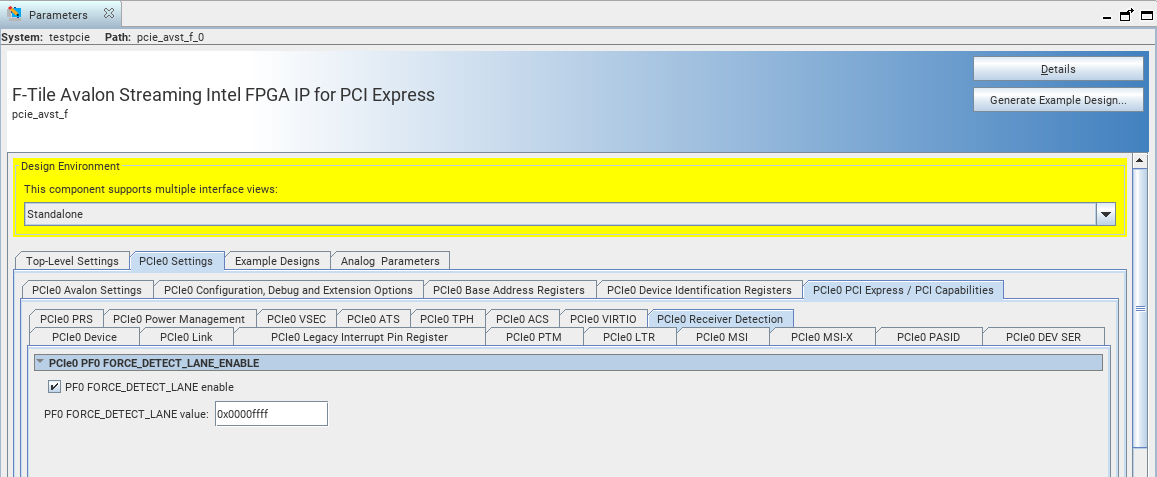

Figure 67. Receiver Detection Parameters

The following table provides a reference for the parameters of the Receiver Detection bypass. Parameters below are dedicated to each core.

Table 106.  Receiver Detection Parameters
Parameter Allowed Range Default Value Description
PF0 FORCE_DETECT_LANE enable True/False False

Force Detect Lane Enable.

When this option is set, the controller ignores receiver detection from PHY during LTSSM Detect state and uses FORCE_DETECT_LANE value.

PF0 FORCE_DETECT_LANE value 0x0000ffff – 0x00000000 0x00000000

When the FORCE_DETECT_LANE_EN field is set, the controller ignores receiver detection from PHY during LTSSM Detect state and uses this value instead.

  • For x4 lane: 0x0000000f
  • For x8 lane: 0x000000ff
  • For x16 lane: 0x0000ffff
