2.1. Starting the Flash Programmer GUI

There are two ways to start the Nios® II Flash Programmer GUI:
  • From the Nios® II Command Shell:
    • type nios2-flash-programmer-gui r
  • From the Nios® II SBT for Eclipse:
    • On the Nios® II menu, click Flash Programmer and the Flash Programmer dialog box appears.

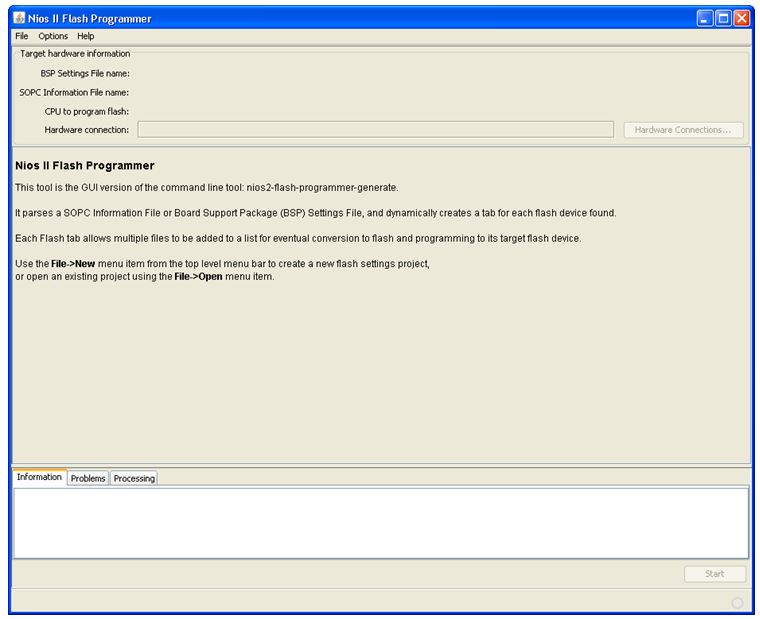

  • Figure 3. Flash Programmer Dialog Box
