MaxMag

Returns the element with the larger magnitude between each pair of elements of the two vector arguments.

Performance:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA 3.88 0.89 0.69 0.52
LA 1.37 0.89 0.69 0.52
EP 1.37 0.89 0.69 0.52
double HA 2.30 2.49 1.95 1.02
LA 2.28 2.49 1.95 1.02
EP 2.28 2.49 1.95 1.01
Notes:
  1. Units - CPE (Clocks per Element)

  2. Performance was measured on "working" interval (double precision: [ -10000.0, 10000.0 ] for both arguments; single precision: [ -10000.0, 10000.0 ] for both arguments)

  3. Data - vectors of 1000 elements with random generated numbers.

  4. All data was collected with 64-bit libraries.

Accuracy:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA 0.00 0.00 0.00 0.00
LA 0.00 0.00 0.00 0.00
EP 0.00 0.00 0.00 0.00
double HA 0.00 0.00 0.00 0.00
LA 0.00 0.00 0.00 0.00
EP 0.00 0.00 0.00 0.00
NOTE:
Units - ULP (Units in the Last Place).

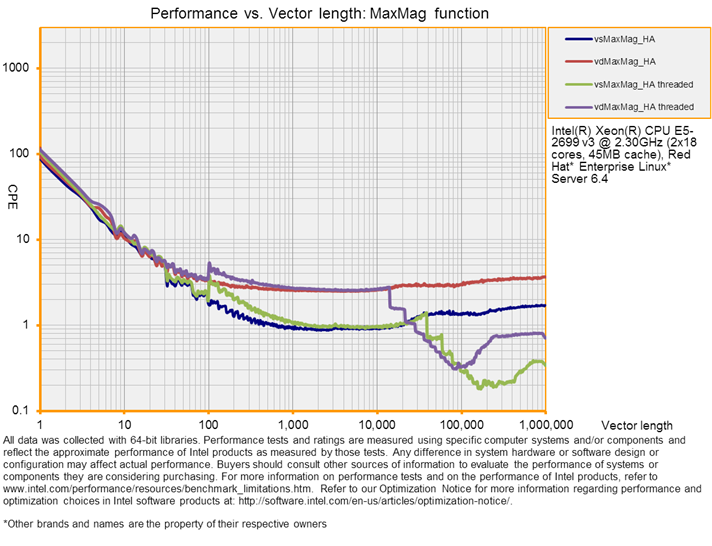

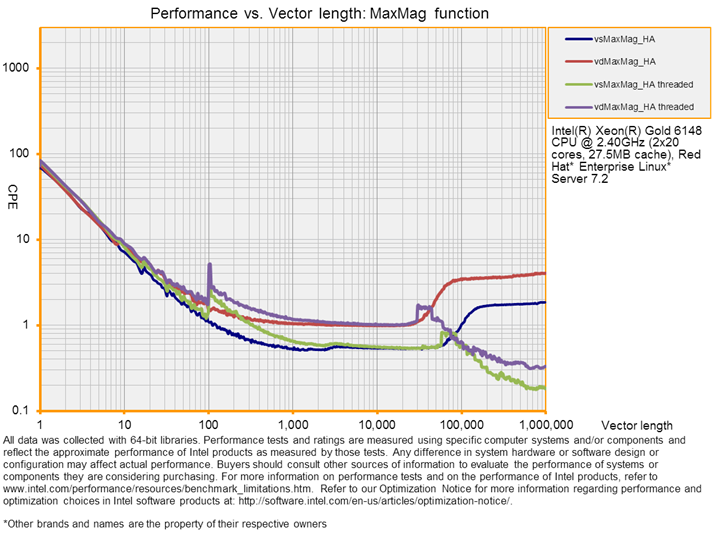

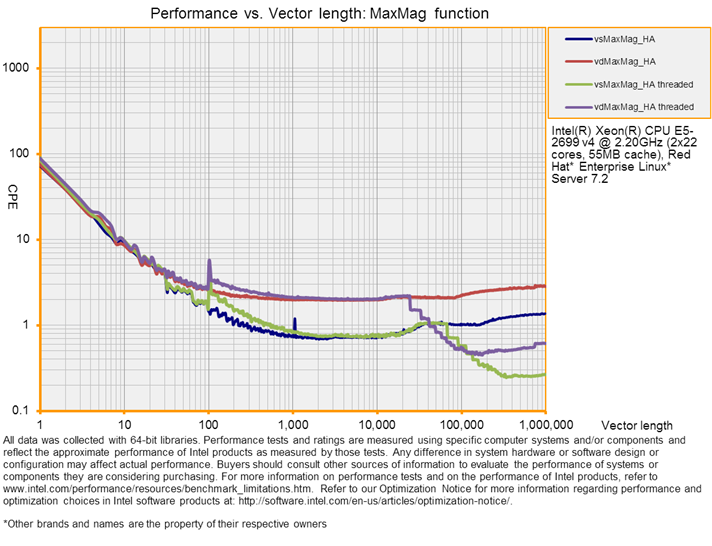

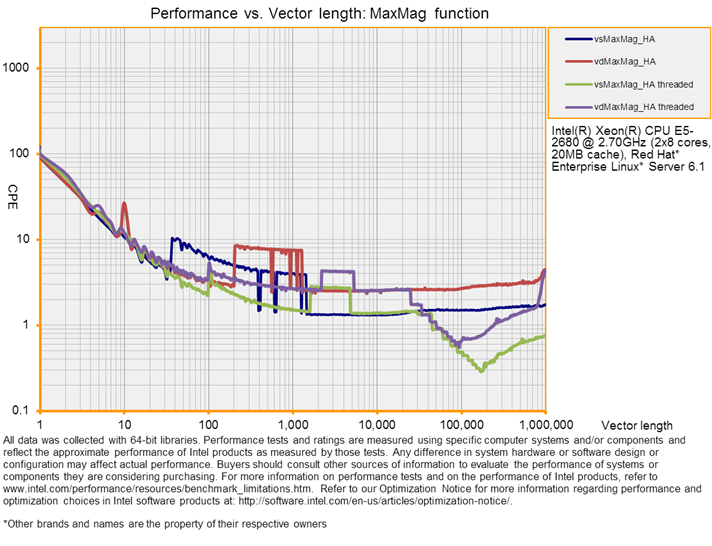

Performance Graphs:

Parent topic: Miscellaneous
