Atanh

Computes an inverse hyperbolic tangent of real vector elements.

Performance:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA 6.71 6.88 5.95 2.12
LA 5.74 4.76 4.13 1.79
EP 4.94 4.13 3.58 1.42
double HA 14.88 14.64 12.44 4.73
LA 13.46 12.80 10.90 4.04
EP 12.46 12.28 10.42 3.09
Notes:
  1. Units - CPE (Clocks per Element)

  2. Performance was measured on "working" interval (double precision: [ 0.005, 0.99999 ]; single precision: [ 0.77, 0.99999 ])

  3. Data - vectors of 1000 elements with random generated numbers.

  4. All data was collected with 64-bit libraries.

Accuracy:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA 0.50 0.50 0.50 0.50
LA 1.28 1.28 1.28 0.58
EP 1.46E+03 1.46E+03 1.46E+03 686.00
double HA 0.50 0.50 0.50 0.54
LA 1.75 1.75 1.75 0.76
EP 1.12E+04 1.12E+04 1.12E+04 1.38E+06
NOTE:
Units - ULP (Units in the Last Place).

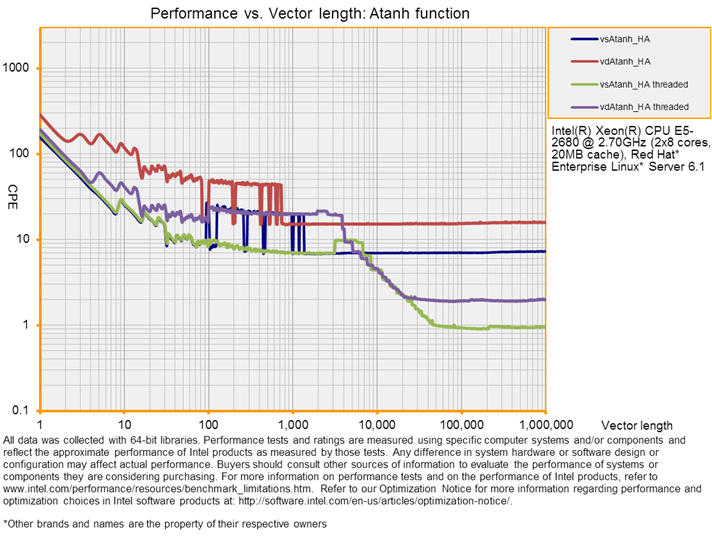

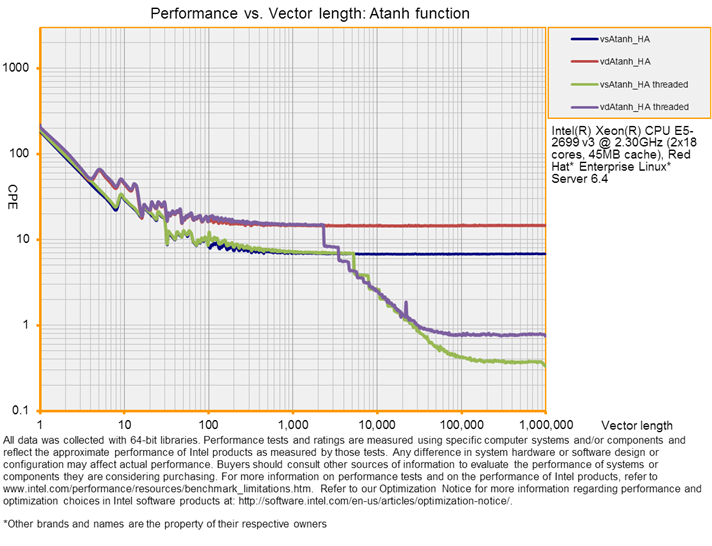

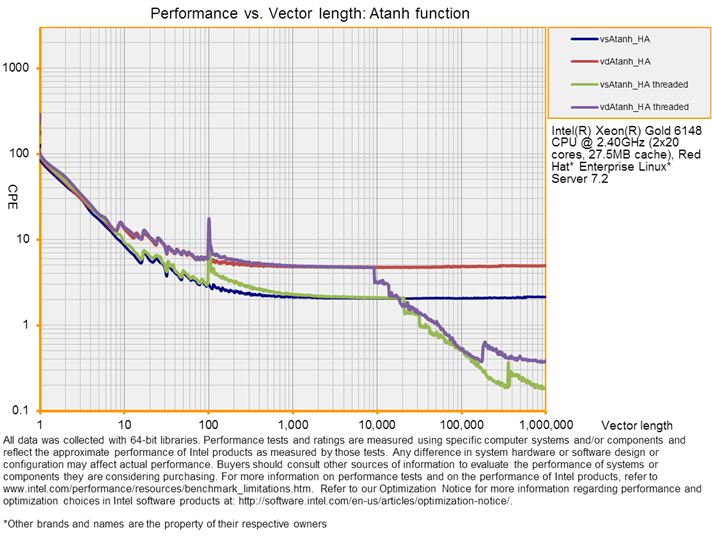

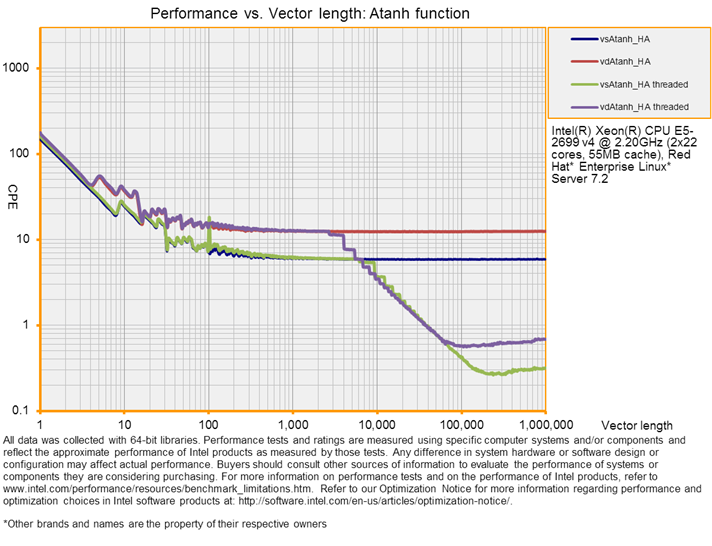

Performance Graphs:
