3.1. Importing Nios® V Processor Project

To import Nios® V processor BSP and application project to RiscFree* IDE, follow these steps:

  1. Click File > Import Nios V CMake Project.
  2. In the Import Nios V CMake Project window, browse and select the location of the Nios® V processor BSP or application project.
  3. Click Finish. The CMake driven application or BSP project is added to the Project Explorer.
  4. After you specify the location path, the project name is automatically filled in. However, you can still rename the project if needed.

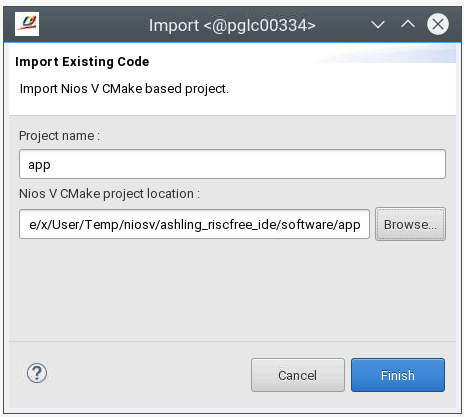

    Figure 8. Importing Nios® V Processor Sample Project
