1.3. Specify EDA Tool Settings

Specify EDA tool settings to generate simulation files for supported simulators by performing the following steps:
  1. In the Intel® Quartus® Prime software, click Assignments > Settings > EDA Tool Settings.
  2. Under Simulation, select Questa Intel FPGA as the Tool name. Retain the default settings for Format for output netlist and Output directory.

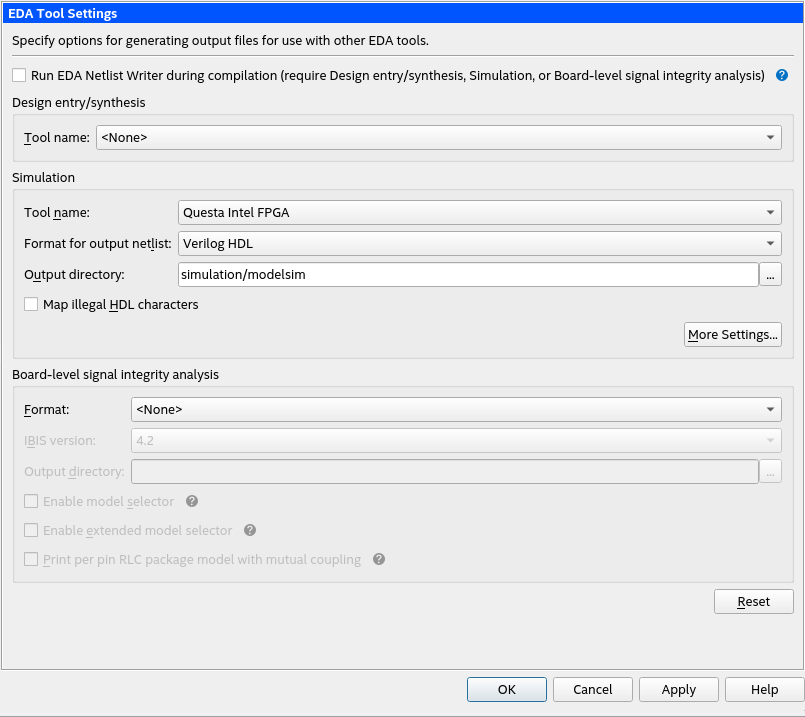

    Figure 2. EDA Tool Settings
