1.5. Create the Simulation Script

Create the simulation script to enable specific commands that simulate the IP cores in the project.
  1. In a text editor, open the /Quartus_PRO_PLL_RAM/mentor/msim_setup.tcl file.
  2. Create a new text file with the name mentor_example.do and save it in the /PLL_RAM/mentor/ directory.
  3. In the msim_setup.tcl file, copy the section of code enclosed within the TOP-LEVEL TEMPLATE – BEGIN and TOP-LEVEL TEMPLATE – END comments, and then paste this code into the new mentor_example.do file.
  4. In the mentor_example.do file, delete single pound (#) characters preceding the following highlighted lines to enable compilation commands:
    Figure 4. Uncomment Highlighted Simulation Commands in the Script
  5. Replace the following lines in the mentor_example.do script:
    Table 1.  Specify Values in the mentor_example.do Script
    Replace this Line With this Line
    set QSYS_SIMDIR <script generation output directory>
    set QSYS_SIMDIR ../
    vlog <compilation options> <design and testbench files>
    vlog -vlog01compat -work work ../PLL_RAM.v
    vlog -vlog01compat -work work ../UP_COUNTER_IP/UP_COUNTER_IP.v
    vlog -vlog01compat -work work ../DOWN_COUNTER_IP/DOWN_COUNTER_IP.v
    vlog -vlog01compat -work work ../ClockPLL/ClockPLL.v
    vlog -vlog01compat -work work ../RAMhub/RAMhub.v
    vlog -vlog01compat -work work ../testbench_1.v

    set TOP_LEVEL_NAME <simulation top>
    set TOP_LEVEL_NAME tb
    elab
    elab_debug

    (elab_debug will evaluate vsim -voptargs=+acc which is used to preserve all signals in the waveform)

    run -a
    add wave *
    view structure
    view signals
    run -all

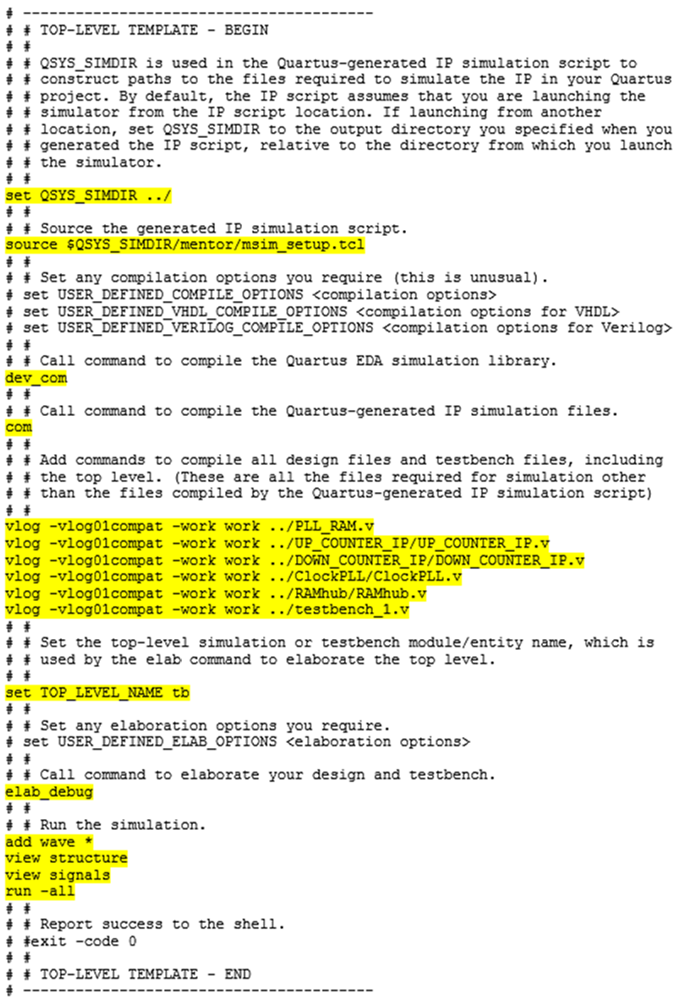

  6. Save the /Quartus_PRO_PLL_RAM/mentor/mentor_example.do file. The following figure shows the mentor_example.do file after revisions are complete:
    Figure 5. Completed Top-Level IP Simulation Setup Script
